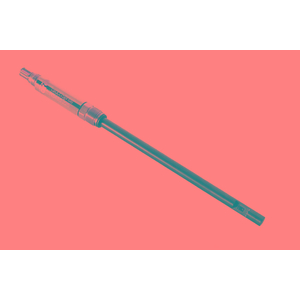

GlucoSense Sensor Specifications
| Process Connection | PG13,5 |
|---|---|
| Wetted Parts | Titanium 3.7035 coated with diamond like carbon Diamond EPDM (Ethylene propylene elastomer) See compliance details in 2.1 Material Specification document REF 111011993 |
| Electrical Connector | VP8 |
| Sensor Output | Arc: Modbus |
| Measuring Range | 0.5 to 25.0 g/L |
| pH Value | The specified glucose measurement accuracy applies when the process pH remains constant within ±0.2 units |
| Electrolyte | None |
| Accuracy at 25 °C | ±0.5 g/l after product calibration at the measurement temperature. Valid for whole measurement range. |
| Sensor Insertion Depth | Minimum 20 mm above the sensing element |
| Temperature Sensor | NTC 47 kOhm |
| Configurable Values | Glucose concentration: g/l, mg/dl, mg/l, mmol/l; Temperature: K, °C, °F |
| O-ring Material | EPDM (Ethylene propylene elastomer) |
| Digital Interface | RS485 Modbus (max. 32 addresses) |
| Operating Voltage | 10 to 27 VDC |
| Certificate | Yes, factory calibration with certified solutions |
| Diameter | 12 mm |
| Autoclavable | Yes (130 °C, 30-minute sterilization duration) |
| Operating Temperature Range | -10 to 130 °C; the sensor provides no Glucose reading above 60 °C |
| Pressure Range bar g | 0 to 5 bar(g) |
| Protection Rating | IP68 |
| Required Flow | None |
| Temperature Measuring Range | The declared glucose measurement accuracy is valid within the temperature range from 25°C to 38°C. |
| Software | ArcAir 3.11 or successive releases |
| Surface Quality of Titanium | Titanium coated with diamond like carbon with Ra < 0.4 μm (N5) |
