Thông Số Kỹ Thuật:

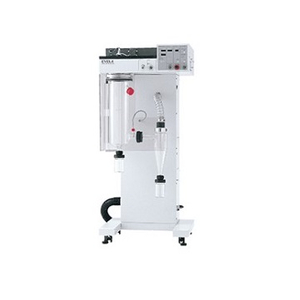

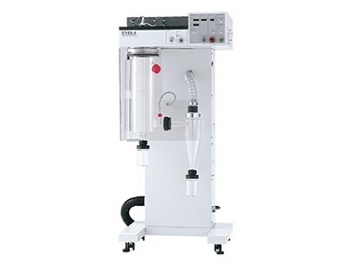

Product name Spray Dryer
Model SD-1010
Cat. No. 275178
Type Spray nozzle (Two-fluid nozzle)（Includes 2mm nozzle diameter: suitable for slurry concentration approx. 5 to 30%)
Moisture evaporation Max. 1500mL/h
Temperature control accuracy  ±1℃
Temperature control range 40 to 200℃ (inlet temperature)
Spray air pressure control range 20 to 250kPa (0.2 to 2.5kg/cm2)
Heated air volume control range 0.2 to 0.75m2/min
Pump flow rate range 150 to 1700mL/h
Sample stirring rotation speed 100 to 1000rpm
Sample volume 50mL to 2L (water)
Safety features  Evaporation tube protection cover, Earth leakage・ overcurrent breaker, Fixed temperature overheat protector, Manual recovery from power failure, Self-diagnostic function (temperature abnormality, air volume abnormality, heater disconnection, abnormal dispensing pressure)
Other functions Spray air line valve ON/OFF switch
External output 0 to 10m V (inlet/outlet port temp., dry air volume)
Heater 3kW
Liquid dispensing pump Peristaltic pump
Spray nozzle Two-fluid nozzle (nozzle hole 0.71mm ID )
Spray air pump Air compressor (option)
Evaporation tube Hard glass
Cyclone Hard glass
Powder collection vessel Hard glass (capacity 600mL)
Sample stirrer Brushless DC motor 6W, cobalt magnet
Suction blower Commutator motor, Max. 0.75m3/min variable flow type
Tubing  3.15 ID x 5.2mm OD
Spray air connecting port diameter 4 ID x 6mm OD, soft urethan tube union
Spray air pressure Pressure 294kPa (3kg/cm2), flow rate 25L/min or more
Exhaust connecting port diameter Exhaust port 50mm OD
Interval timer OFF or 1 to 20 min (automatic intermittent operation)
Ambient temperature range 5 to 35℃
Power input 21A,  4.2kVA
Power supply  220VAC single phase 50/60Hz
Power cord 4.8ｍ・power plug not included
Outer dimensions (mm) 700W x 620D x 1500H
Weight Approx. 110kg
Accessories Silicone tube 3.15 ID x 5.2mm OD x 2m, Exhaust hose 2.5m, Recorder output cable x  3 pcs, Air piping tube 4mm ID x 6mm OD x 5m, Air piping connector (1/4B), Stirring bar
