Thông số kỹ thuật:
|
Product name |

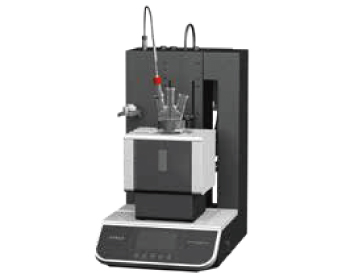

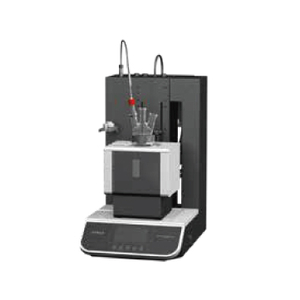

Personal Organic Synthesizer : Single Master |
|
Model |
PPX-1000 |
|
Cat. No. |
283040 |
|
Reaction method |
Batch type and flow type (CSTR) are available by selecting options |
|
Stirring method |
Stirrer (sold separately), Impeller (sold separately) |
|
Number of reaction vessel |
1 pc |
|
Synthesis scale |
Max. 150mL (reaction vessel and glass parts are sold separately) |
|
Temperature control range |
-40.0°C to 180.0°C (thermostatic chamber). It requires connection to low temperature circulator, such as our CCA model or another suitable chiller |
|
Temperature control accuracy |
±0.1°C (thermostatic chamber temperature value) |
|
Rotation speed range Stirrer unit (sold separately) |
High: 0, 125 to 1000rpm, max. shaft torque 19.6mN・m |
|
Rotation speed range Impeller unit (sold separately) |
0, 100 to 2000rpm |
|
Setting・display |
Membrane keypad input・color TFT LCD display (4.3″), LED display bar (color display) |
|
Temperature resolution |
0.1℃ |
|
Temperature control |
Heating and cooling PID control, Selectable internal vessel temperature control (optional liquid temperature sensor required), External temperature control, Fixed value control, Ramp control |
|
Dosage control |
Syringe pump unit PPX-10SS (sold separately): Total dosage volume (mL), Dosage time (min), Dosage temperature range (°C), Auto/Manual |
|
Continuous addition control |
Plunger pump EUI-22-110P (sold separately): Constant flow (0 to 9.99 mL/min) |
|
Additional function |
End temperature setting, PID constant change, Motor selection, Pump selection, Japanese/English (switchable display) |
|
Chamber elevation function |
Manual vertical slide (stroke 114mm, with lock mechanism) |
|
Data record・report |
Recorded data is output in csv format from USB Type-a connector to USB memory (sold separately), Format: FAT32 |
|
Observation window |
With observation window |
|
Liquid temperature measurement |
Liquid temperature sensor PT-1000S・H・T (sold separately) |
|
Safety features |
Reaction part drips receiving structure, Earth leakage breaker, Overcurrent protection (fuse), Lightning surge protection, Motor overload protection, Upper and lower temperature limiter settings, Temperature sensor disconnection detection, Thermostatic chamber temperature sensor error detection, Fixed temperature overheat protector (thermostatic chamber 195°C・water-cooled Peltier element 45°C) |
|
Heating・cooling method |
Heater 200W ・ Water-cooled Peltier element Max.250W |
|
Temperature sensor |
Platinum resistance thermometer Pt1000Ω |
|
Temperature control・stirring unit |
Temperature control unit included・stirring is optional |
|
Reaction vessels |
ChemStation PPV 150mL vessel with 60mm OD (sold separately) |
|
Wetted part material |
Glass, PTFE, PEEK, FFKM (depending on vessel type) |
|
Cooling water connection diameter |
10.5mm OD hose port |
|
Ambient temperature range |
5 to 35℃ |
|
Power input |
8A, 800VA |
|
Supply voltage |
100 to 240VAC 50/60Hz |
|
Outer dimensions (mm) |
301(315)W x 444(511)D x 518(526)H |
|
Weight |
Approx. 23kg |
