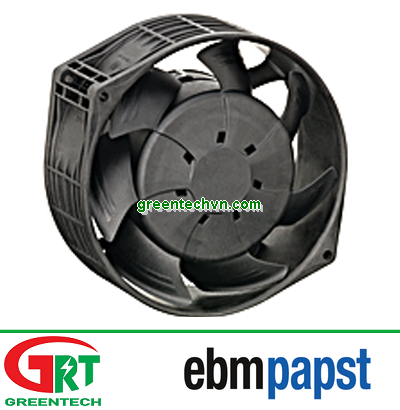

W2E143-AB15-06 | W2E200-HH82-01 | Quạt hướng trục | DC axial compact fan

CHI TIẾT

Technical description
Weight	0.75 kg
Fan size	130 mm
Impeller material	PA plastic
Fan housing material	PP plastic
Number of blades	7
Airflow direction	"V"
Direction of rotation	Counterclockwise, viewed toward rotor
Degree of protection	IP54
Insulation class	"B"
Moisture (F) / Environmental (H) protection class	F3-1
Max. permitted ambient temp. for motor (transport/storage)	+ 80 °C
Min. permitted ambient temp. for motor (transport/storage)	- 40 °C
Installation position	Any
Condensation drainage holes	None
Mode	S1
Motor bearing	Ball bearing
Technical features	- Speed selection max./min. - Soft start - Thermal overload protection for motor
Speed levels	2
EMC immunity to interference	According to EN 61000-6-2 (industrial environment)
EMC circuit feedback	According to EN 61000-3-2/3
EMC interference emission	According to EN 61000-6-3 (household environment)
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system)	<= 0,25 mA
Motor protection	Thermal overload protector (TOP) internally connected
with cable	Lateral
Protection class	II
Conformity with standards	EN 60335-1; EN 60335-2-24; EN 60335-2-80; EN 60335-2-89 / CE
Approval	EAC / UL 2111 / VDE / CCC / CSA C22.2 No. 77

THÔNG SỐ KỸ THUẬT


in mm	cfm	in dB(A)	in Hz	in V		in Bel
220 x 200 x 51	553.7	66		16 .. 36	DC	7.4
220 x 200 x 51	465.3	62		16 .. 30	DC	7.1
220 x 200 x 51	718.6	72		36 .. 72	DC	8.2
220 x 200 x 51	553.7	66		36 .. 72	DC	7.4
220 x 200 x 51	465.3	62		36 .. 57	DC	7.1
25 x 25 x 8	2.7	23		10 .. 14	DC	4.4
25 x 25 x 8	2	15		10 .. 14	DC
25 x 25 x 8	2.7	23		4.5 .. 5.5	DC	4.4
25 x 25 x 8	1.4	5		4.5 .. 5.5	DC
25 x 25 x 8	2.1	16		4.5 .. 5.5	DC
92 x 92 x 38	86	55		7 .. 15	DC	6.4
92 x 92 x 38	139.6	69		6 .. 13.8	DC	7.8
92 x 92 x 38	164.9	73		6 .. 13.8	DC	8.2
92 x 92 x 38	76.6	51		7 .. 13.8	DC	6.1
92 x 92 x 38	86	55		12 .. 30	DC	6.4
92 x 92 x 38	139.6	69		12 .. 27.6	DC	7.8
92 x 92 x 38	164.9	73		12 .. 27.6	DC	8.2
92 x 92 x 38	76.6	51		11 .. 28	DC	6.1
92 x 92 x 38	86	55		36 .. 53	DC	6.4
92 x 92 x 38	139.6	69		20 .. 58	DC	7.8
92 x 92 x 38	164.9	73		20 .. 58	DC	8.2
92 x 92 x 38	76.6	51		36 .. 56	DC	6.1
92 x 92 x 38	159	64		7 .. 13,2	DC	7.6
92 x 92 x 38	159	64		14 .. 26,4	DC	7.6
92 x 92 x 38	159	64		36 .. 56	DC	7.6
92 x 92 x 38	138.4	59		36 .. 56	DC	7
92 x 92 x 32	54.8	38		6 .. 15	DC	5.1
92 x 92 x 32	78.3	48		6 .. 15	DC	5.9
92 x 92 x 32	63	42		6 .. 15	DC	5.4
92 x 92 x 32	33	24		6 .. 15	DC	4.1
92 x 92 x 32	40.1	29		6 .. 15	DC	4.5
92 x 92 x 32	47.1	35		6 .. 15	DC	4.7
92 x 92 x 32	54.8	38		12 .. 28	DC	5.1
92 x 92 x 32	78.3	50		12 .. 28	DC	6
92 x 92 x 32	63	42		12 .. 28	DC	5.4
92 x 92 x 32	47.1	35		12 .. 28	DC	4.7
92 x 92 x 32	47.1	37		36 .. 60	DC	5.2
92 x 92 x 32	54.8	38		36 .. 60	DC	5.1
92 x 92 x 32	78.3	50		36 .. 58	DC	6
92 x 92 x 32	47.1	35		36 .. 60	DC	4.7
92 x 92 x 25	49.5	32		8 .. 15	DC	4.7
92 x 92 x 25	49.5	32		8 .. 15	DC	4.7
92 x 92 x 25	55.4	36		8 .. 15	DC	5
92 x 92 x 25	60.1	39		8 .. 13.2	DC	5.1
92 x 92 x 25	35.9	23		8 .. 15	DC	4
92 x 92 x 25	42.4	28		8 .. 15	DC	4.3
92 x 92 x 25	42.4	28		8 .. 14	DC	4.3
92 x 92 x 25	49.5	32		8 .. 12.6	DC	4.7
92 x 92 x 25	55.4	36		8 .. 15	DC	5
92 x 92 x 25	60.1	39		8 .. 13.2	DC	5.1
92 x 92 x 25	60.1	39		8 .. 15	DC	5.1
92 x 92 x 25	35.9	23		8 .. 15	DC	4
92 x 92 x 25	42.4	28		8 .. 15	DC	4.3
92 x 92 x 25	49.5	32		18 .. 28	DC	4.7
92 x 92 x 25	55.4	36		18 .. 26	DC	5
92 x 92 x 25	60.1	39		18 .. 26	DC	5.1
92 x 92 x 25	60.1	39		18 .. 28	DC	5.1
92 x 92 x 25	35.9	23		18 .. 28	DC	4
92 x 92 x 25	42.4	28		18 .. 28	DC	4.3
92 x 92 x 25	55.4	36		18 .. 26	DC	5
92 x 92 x 25	60.1	39		18 .. 26	DC	5.1
92 x 92 x 25	60.1	39		18 .. 28	DC	5.1
92 x 92 x 25	35.9	23		18 .. 28	DC	4
92 x 92 x 25	42.4	28		18 .. 28	DC	4.3
92 x 92 x 25	49.5	32		36 .. 56	DC	4.7
40 x 40 x 20	5.9	18		4.5 .. 5.5	DC	3.8
40 x 40 x 20	5.9	18		10 .. 14	DC	3.8
40 x 40 x 20	5.9	18		20 .. 28	DC	3.8
92 x 92 x 38	43	35	60	115	AC	4.6
92 x 92 x 38	43	36	60	115	AC	4.7
92 x 92 x 38	39.5	32	50	230	AC	4.4
92 x 92 x 38	39.5	33	50	230	AC	4.5
92 x 92 x 38	52.4	41	60	115	AC	5.1
92 x 92 x 38	52.4	42	60	115	AC	5.2
92 x 92 x 38	44.2	36	50	230	AC	4.8
92 x 92 x 38	44.2	37	50	230	AC	4.9
92 x 92 x 38	31.8	26	60	115	AC	3.9
92 x 92 x 38	35.3	29	60	115	AC	4.2
92 x 92 x 38	28.9	24	50	230	AC	3.7
92 x 92 x 38	31.8	26	50	230	AC	3.9
92 x 92 x 25	41.2	40	60	115	AC	5.1
92 x 92 x 25	23	27	60	115	AC	4
92 x 92 x 25	31.2	34	60	115	AC	4.6
92 x 92 x 25	41.2	40	60	115	AC	5.1
92 x 92 x 25	23	27	60	115	AC	4
92 x 92 x 25	31.2	34	60	115	AC	4.6
92 x 92 x 25	34.8	35	50	230	AC	4.7
92 x 92 x 25	18.3	24	50	230	AC	3.8
92 x 92 x 25	26.5	29	50	230	AC	4.2
92 x 92 x 25	34.8	35	50	230	AC	4.7
92 x 92 x 25	18.3	24	50	230	AC	3.8
92 x 92 x 25	26.5	29	50	230	AC	4.2
40 x 40 x 10	4.7	22.1		4.5 .. 5.5	DC	4.4
40 x 40 x 10	5.3	26		4.5 .. 5.5	DC	4.6
119 x 119 x 38	182.6	65		9 .. 15	DC	7.2
119 x 119 x 38	209.1	67		9 .. 14	DC	7.4
119 x 119 x 38	153.1	60		9 .. 15	DC	6.8
119 x 119 x 38	294.5	76		16 .. 30	DC	8.5
119 x 119 x 38	335.7	78		16 .. 30	DC	8.9
119 x 119 x 38	182.6	65		16 .. 30	DC	7.2
119 x 119 x 38	209.1	67		16 .. 30	DC	7.4
119 x 119 x 38	229.7	70		16 .. 30	DC	7.6
119 x 119 x 38	259.2	73		16 .. 30	DC	8.1
119 x 119 x 38	153.1	60		16 .. 30	DC	6.8
119 x 119 x 38	294.5	76		36 .. 60	DC	8.5
119 x 119 x 38	335.7	78		36 .. 60	DC	8.9
119 x 119 x 38	182.6	65		36 .. 60	DC	7.2
119 x 119 x 38	209.1	67		36 .. 60	DC	7.4
119 x 119 x 38	229.7	70		36 .. 60	DC	7.6
119 x 119 x 38	259.2	73		36 .. 60	DC	8.1
119 x 119 x 38	153.1	60		36 .. 60	DC	6.8
40 x 40 x 10	4.7	22.1		10 .. 14	DC	4.4
40 x 40 x 10	4.7	22.1		10 .. 14	DC	4.4
40 x 40 x 10	5.3	26		10 .. 14	DC	4.6
40 x 40 x 10	5.3	26		10 .. 14	DC	4.6
40 x 40 x 10	3.5	17		10 .. 14	DC	3.8
40 x 40 x 10	3.5	17		10 .. 14	DC	3.8
40 x 40 x 20	8	29		10 .. 14	DC	4.7
40 x 40 x 25	11.2	39		8 .. 14	DC	5.5
40 x 40 x 25	13	43		8 .. 13.5	DC	5.8
40 x 40 x 25	14.1	46		8 .. 13.5	DC	6.1
40 x 40 x 20	5.9	18		10 .. 14	DC	3.8
40 x 40 x 10	4.7	22.1		20 .. 28	DC	4.4
40 x 40 x 10	5.3	26		21.6 .. 26.4	DC	4.4
40 x 40 x 20	8	29		20 .. 26.5	DC	4.7
40 x 40 x 25	11.2	39		18 .. 27	DC	5.5
40 x 40 x 25	13	43		18 .. 27	DC	5.8
40 x 40 x 25	14.1	46		18 .. 27	DC	6.1
119 x 119 x 38	94.2	44		6 .. 15	DC	5.3
119 x 119 x 38	106	49		6 .. 15	DC	5.7
119 x 119 x 38	139.6	57		7 .. 14	DC	6.5
119 x 119 x 38	94.2	44		12 .. 31,5	DC	5.3
119 x 119 x 38	106	49		12 .. 31,5	DC	5.7
119 x 119 x 38	139.6	57		12 .. 28	DC	6.5
119 x 119 x 38	94.2	44		12 .. 31,5	DC	5.3
119 x 119 x 38	94.2	44		36 .. 60	DC	5.3
119 x 119 x 38	94.2	44		36 .. 60	DC	5.3
40 x 40 x 28	22.4	54		8 .. 13,8	DC	6.6
40 x 40 x 28	14.1	42		8 .. 13,8	DC	5.5
40 x 40 x 28	18.3	48		8 .. 13,8	DC	6
40 x 40 x 28	22.4	54		16 .. 26,4	DC	6.6
40 x 40 x 28	14.1	42		16 .. 28	DC	5.5
40 x 40 x 28	18.3	48		16 .. 28	DC	6
119 x 119 x 32	100.1	45		6 .. 15	DC	5.8
119 x 119 x 32	56	30		6 .. 15	DC	4.3
119 x 119 x 32	82.5	39		6 .. 15	DC	5.3
119 x 119 x 32	56	30		6 .. 15	DC	4.3
119 x 119 x 32	82.5	39		6 .. 15	DC	5.3
119 x 119 x 32	81.3	39		8 .. 15	DC	5.3
119 x 119 x 32	82.5	39		8 .. 15	DC	5.3
119 x 119 x 32	100.1	45		8 .. 13.2	DC	5.8
119 x 119 x 32	106	47		6 .. 15	DC	6.1
119 x 119 x 32	120.2	51		6 .. 13.2	DC	6.4
119 x 119 x 32	100.1	45		12 .. 28	DC	5.8
119 x 119 x 32	100.1	45		12 .. 28	DC	5.8
119 x 119 x 32	56	30		12 .. 28	DC	4.3
119 x 119 x 32	82.5	39		12 .. 28	DC	5.3
119 x 119 x 32	100.1	45		18 .. 32	DC	5.8
119 x 119 x 32	100.1	45		21 .. 27	DC	5.8
119 x 119 x 32	106	47		12 .. 28	DC	6.1
119 x 119 x 32	120.2	51		12 .. 26.5	DC	6.4
119 x 119 x 32	100.1	45		36 .. 53	DC	5.8
119 x 119 x 32	82.5	39		36 .. 56	DC	5.3
119 x 119 x 32	100.1	45		40 .. 53	DC	5.8
119 x 119 x 38	167.9	55		7 .. 14.5	DC	6.4
119 x 119 x 25	100.1	43		8 .. 12.6	DC	5.3
119 x 119 x 25	100.1	43		8 .. 12.6	DC	5.3
119 x 119 x 25	55.4	26		7 .. 14	DC	3.9
127 x 127	53.6	26		7 .. 15	DC	3.9
119 x 119 x 25	82.5	38		7 .. 12.6	DC	4.8
119 x 119 x 25	67.1	32		7 .. 12.6	DC	4.3
119 x 119 x 25	82.5	38		7 .. 12.6	DC	4.8
119 x 119 x 25	67.1	32		7 .. 12.6	DC	4.3
119 x 119 x 25	132.5	55		9 .. 13.2	DC	6.7
119 x 119 x 38	141.4	50		7 .. 14	DC	6
119 x 119 x 38	88.4	37		7 .. 14	DC	5
119 x 119 x 38	108.4	42		7 .. 14	DC	5.3
119 x 119 x 38	120.7	46		7 .. 14	DC	5.6
119 x 119 x 38	167.9	55		18 .. 28	DC	6.4
119 x 119 x 25	100.1	43		12 .. 28	DC	5.3
119 x 119 x 25	100.1	43		12 .. 28	DC	5.3
119 x 119 x 25	55.4	26		18 .. 28	DC	3.9
119 x 119 x 25	82.5	38		12 .. 28	DC	4.8
119 x 119 x 25	132.5	55		18 .. 26.4	DC	6.7
119 x 119 x 25	117.8	52		14 .. 28	DC	6.5
119 x 119 x 38	141.4	50		18 .. 28	DC	6
119 x 119 x 38	167.9	55		16 .. 28	DC	6.4
119 x 119 x 38	88.4	37		18 .. 28	DC	5
119 x 119 x 38	108.4	42		18 .. 28	DC	5.3
119 x 119 x 38	120.7	46		18 .. 28	DC	5.6
119 x 119 x 38	167.9	55		36 .. 60	DC	6.4
119 x 119 x 25	100.1	43		28 .. 53	DC	5.3
119 x 119 x 25	100.1	43		28 .. 53	DC	5.3
119 x 119 x 25	132.5	55		36 .. 53	DC	6.7
119 x 119 x 38	141.4	50		36 .. 60	DC	6
119 x 119 x 38	88.4	37		36 .. 60	DC	5
119 x 119 x 38	108.4	42		36 .. 60	DC	5.3
119 x 119 x 38	120.7	46		36 .. 60	DC	5.6
119 x 119 x 38	99.5	48	60	115	AC	5.7
119 x 119 x 38	88.9	45	60	115	AC	5.4
119 x 119 x 38	70.7	32	60	115	AC	4.4
119 x 119 x 38	70.7	32	60	115	AC	4.4
119 x 119 x 38	85.4	44	50	230	AC	5.4
119 x 119 x 38	72.4	41	50	230	AC	5.2
119 x 119 x 38	67.7	30	50	230	AC	4.3
119 x 119 x 38	67.7	30	50	230	AC	4.3
119 x 119 x 38	106	50	60	115	AC	5.7
108 Ø x 37	82.5	45	60	115	AC
119 x 119 x 38	106	45	60	115	AC	5.6
119 x 119 x 38	106	51	60	115	AC	5.8
113 Ø x 37	86.6	44	60	115	AC
108 Ø x 37	82.5	45	60	115	AC
119 x 119 x 38	106	45	60	115	AC	5.6
119 x 119 x 38	94.2	46	50	230	AC	5.4
113 Ø x 37	81.3	41	50	230	AC
108 Ø x 37	73.6	42	50	230	AC
119 x 119 x 38	94.2	40	50	230	AC	5.3
119 x 119 x 38	94.2	47	50	230	AC	5.5
113 Ø x 37	81.3	42	50	230	AC
108 Ø x 37	73.6	42	50	230	AC
119 x 119 x 38	94.2	40	50	230	AC	5.3
119 x 119 x 38	57.1	32	60	115	AC	4.3
119 x 119 x 38	61.8	28	60	115	AC	4.1
119 x 119 x 38	61.8	28	60	115	AC	4.1
119 x 119 x 38	50.1	26	60	115	AC	4.1
119 x 119 x 38	58.9	32	50	230	AC	4.4
119 x 119 x 38	58.9	26	50	230	AC	4
119 x 119 x 38	58.9	26	50	230	AC	4
119 x 119 x 38	47.1	25	50	230	AC	4
135 x 135 x 38	153.1	48		6 .. 15	DC	6.1
135 x 135 x 38	153.1	48		12 .. 30	DC	6.1
135 x 135 x 38	153.1	48		24 .. 60	DC	6.1
135 x 135 x 38	71.9	28		24 .. 60	DC	4.1
50 x 50 x 15	11.8	30		10.8 .. 13.2	DC	4.5
50 x 50 x 15	11.8	30		10.8 .. 13.2	DC	4.5
50 x 50 x 15	6.5	18		11.5 .. 13.2	DC	3.7
50 x 50 x 15	11.8	30		21.6 .. 26.4	DC	4.5
127 x 127 x 38	148.4	51		7 .. 14	DC	6
127 x 127 x 38	200.3	58		9 .. 15	DC	6.6
127 x 127 x 38	110.1	43		7 .. 14.5	DC	5.3
127 x 127 x 38	127.2	46		7 .. 14	DC	5.6
127 x 127 x 38	148.4	51		12 .. 28	DC	6
127 x 127 x 38	200.3	58		16 .. 30	DC	6.6
127 x 127 x 38	110.1	43		12 .. 28	DC	5.3
127 x 127 x 38	127.2	46		12 .. 28	DC	5.6
127 x 127 x 38	148.4	51		36 .. 56	DC	6
127 x 127 x 38	200.3	58		36 .. 60	DC	6.6
127 x 127 x 38	110.1	43		36 .. 56	DC	5.3
127 x 127 x 38	127.2	46		36 .. 56	DC	5.6
140 x 140 x 51	241.5	70		8 .. 16	DC	7.7
140 x 140 x 51	241.5	70		16 .. 36	DC	7.7
140 x 140 x 51	200.3	64		16 .. 28	DC	7.2
140 x 140 x 51	288.6	75		16 .. 36	DC	8.1
140 x 140 x 51	394.6	79		36 .. 72	DC	8.8
140 x 140 x 51	288.6	75		36 .. 72	DC	8.1
140 x 140 x 51	241.5	70		36 .. 72	DC	7.7
140 x 140 x 51	200.3	64		36 .. 72	DC	7.2
135 x 135 x 38	159	50	60	115	AC	6.2
135 x 135 x 38	138.4	46	50	230	AC	5.9
127 x 127 x 38	121.3	46	60	115	AC	5.7
127 x 127 x 38	121.3	47	60	115	AC	5.8
127 x 127 x 38	95.4	40	60	115	AC	4.9
127 x 127 x 38	106	43	50	230	AC	5.4
127 x 127 x 38	106	44	50	230	AC	5.5
127 x 127 x 38	88.4	37	50	230	AC	4.9
172 Ø x 51	259.2	60	60	115	AC	6.4
172 Ø x 51	294.5	58	60	115	AC	6.7
60 x 60 x 15	17.1	27		4.5 .. 5.2	DC	4.4
172 Ø x 51	220.9	55	50	230	AC	5.9
172 Ø x 51	247.4	54	50	230	AC	6.3
60 x 60 x 15	17.1	27		10.8 .. 13.2	DC	4.4
60 x 60 x 15	17.1	27		10.8 .. 12.6	DC	4.4
60 x 60 x 15	19.4	31		10 .. 13.2	DC	4.8
60 x 60 x 15	11.2	16		11.5 .. 13.2	DC	3.6
60 x 60 x 15	11.2	16		11.5 .. 14	DC	3.6
60 x 60 x 32	41.2	53		7 .. 13.6	DC	6.4
60 x 60 x 25	12.4	16		8 .. 15	DC	3.6
60 x 60 x 25	20.6	28		8 .. 15	DC	4.6
60 x 60 x 25	20.6	28		8 .. 12.6	DC	4.6
60 x 60 x 25	14.7	19		8 .. 15	DC	3.9
60 x 60 x 25	24.1	35		8 .. 12.6	DC	5
60 x 60 x 25	24.1	35		8 .. 12.6	DC	5
60 x 60 x 25	25.3	37		8 .. 15	DC	5.3
60 x 60 x 25	33	41		8 .. 15	DC	5.7
60 x 60 x 25	12.4	16		8 .. 15	DC	3.6
60 x 60 x 25	20.6	28		8 .. 15	DC	4.6
60 x 60 x 25	20.6	28		8 .. 12.6	DC	4.6
60 x 60 x 25	14.7	19		8 .. 15	DC	3.9
60 x 60 x 25	24.7	35		8 .. 15	DC	5
60 x 60 x 25	24.1	35		8 .. 12.6	DC	5
60 x 60 x 15	17.1	27		21.6 .. 26.4	DC	4.4
60 x 60 x 32	48.3	62		18 .. 30	DC	7.6
60 x 60 x 32	41.2	53		14 .. 26.4	DC	6.4
60 x 60 x 25	12.4	16		18 .. 28	DC	3.6
60 x 60 x 25	20.6	28		18 .. 28	DC	4.6
60 x 60 x 25	14.7	19		18 .. 28	DC	3.9
60 x 60 x 25	25.3	37		18 .. 26	DC	5.3
60 x 60 x 25	33	41		18 .. 26	DC	5.7
60 x 60 x 25	33	41		18 .. 28	DC	5.7
60 x 60 x 25	12.4	16		18 .. 28	DC	3.6
60 x 60 x 25	20.6	28		18 .. 28	DC	4.6
60 x 60 x 25	14.7	19		18 .. 28	DC	3.9
60 x 60 x 25	24.7	35		18 .. 28	DC	5
60 x 60 x 32	48.3	62		38 .. 58	DC	7.6
60 x 60 x 32	41.2	53		36 .. 56	DC	6.4
60 x 60 x 25	20.6	28		36 .. 56	DC	4.6
60 x 60 x 25	24.7	35		36 .. 56	DC	5
60 x 60 x 25	39.5	48		8 .. 13.2	DC	5.9
60 x 60 x 25	27.1	39		8 .. 15	DC	5.1
60 x 60 x 25	33	43		8 .. 15	DC	5.6
60 x 60 x 25	17.7	29		8 .. 15	DC	4.3
60 x 60 x 25	17.7	29		8 .. 15	DC	4.3
60 x 60 x 25	23.6	35		8 .. 15	DC	4.7
60 x 60 x 25	27.1	39		18 .. 28	DC	5.1
60 x 60 x 25	33	43		18 .. 28	DC	5.6
60 x 60 x 25	12.4	20		18 .. 28	DC	3.7
60 x 60 x 25	17.7	29		12 .. 28	DC	4.3
60 x 60 x 25	23.6	35		12 .. 28	DC	4.7
60 x 60 x 25	33	43		36 .. 60	DC	5.6
172 Ø x 51	353.4	60		8 .. 16	DC	7.3
172 Ø x 51	359.3			8 .. 16	DC
172 Ø x 51	353.4	60		16 .. 36	DC	7.3
172 Ø x 51	418.2	69		16 .. 36	DC	7.9
172 Ø x 51	321	58		16 .. 30	DC	6.9
172 Ø x 51	232.7	51		16 .. 30	DC	6
172 Ø x 51	276.8	56		16 .. 30	DC	6.5
172 x 160 x 51	418.2	69		16 .. 36	DC	7.9
172 Ø x 51	353.4	60		16 .. 30	DC	7.3
172 Ø x 51	318.1			16 .. 36	DC	6.9
172 Ø x 51	571.3			16 .. 36	DC	8.3
172 Ø x 51	547.8	75		36 .. 72	DC	8.4
172 Ø x 51	418.2	69		36 .. 72	DC	7.9
172 Ø x 51	353.4	60		36 .. 72	DC	7.3
172 Ø x 51	321	58		36 .. 72	DC	6.9
172 x 160 x 51	547.8	75		36 .. 72	DC	8.4
172 Ø x 51	353.4	60		36 .. 60	DC	7.3
172 Ø x 51	403.5			36 .. 72	DC	7.5
172 Ø x 51	606.7	83		36 .. 72	DC	8.4
60 x 60 x 25	25.9	35		10,8 .. 13,2	DC	5.4
60 x 60 x 25	23.6	33		6 .. 15	DC	5.2
60 x 60 x 25	34.2	44		18 .. 28	DC	6.1
60 x 60 x 25	23.6	34		12 .. 30	DC	5.1
60 x 60 x 25	34.2	44		18 .. 28	DC	6.1
60 x 60 x 25	25.9	35		40 .. 60	DC	5.4
172 x 150 x 51	206.2	52		8 .. 15	DC	6
172 x 150 x 51	241.5	57		12 .. 28	DC	6.4
172 x 150 x 51	282.7	63		12 .. 28	DC	7.1
172 x 150 x 51	206.2	52		12 .. 32	DC	6
172 x 150 x 51	241.5	57		12 .. 28	DC	6.4
172 x 150 x 51	353.4	65		16 .. 28	DC	7.4
172 x 150 x 51	241.5	57		28 .. 60	DC	6.4
172 x 150 x 51	282.7	63		28 .. 60	DC	7.1
172 x 150 x 51	206.2	52		28 .. 60	DC	6
172 x 150 x 51	241.5	57		28 .. 60	DC	6.4
172 x 150 x 72	353.4	65		40 .. 55	DC	7.4
172 x 150 x 51	530.1	78		36 .. 72	DC	8.6
150 x 172 x 38	223.8	56	60	115	AC	6.8
150 x 172 x 38	188.5	51	50	230	AC	6.4
150 Ø x 38	181.4	53		6 .. 15	DC	6.2
150 Ø x 38	181.4	53		12 .. 30	DC	6.2
150 Ø x 38	212	58		12 .. 26.5	DC	6.7
150 Ø x 38	181.4	53		24 .. 60	DC	6.2
70 x 70 x 15	25.9	38		8 .. 13.8	DC	5.3
70 x 70 x 15	16.5	25		8 .. 13.8	DC	4.7
70 x 70 x 15	21.2	32		8 .. 13.8	DC	5
70 x 70 x 15	25.9	38		18 .. 28	DC	5.3
150 Ø x 55	212	53		6 .. 15	DC	6.2
150 Ø x 55	212	53		12 .. 30	DC	6.2
150 Ø x 55	212	53		24 .. 60	DC	6.2
150 Ø x 55	250.3	62	60	115	AC	6.9
150 Ø x 55	223.8	60	50	230	AC	6.8
150 Ø x 55	223.8	53	60	115	AC	6.4
150 Ø x 55	223.8	53	60	115	AC	6.4
150 Ø x 55	191.4	49	50	230	AC	6
150 Ø x 55	191.4	49	50	230	AC	6
80 x 80 x 38	111.9	66		6 .. 13.8	DC	7.3
80 x 80 x 38	130.8	71		6 .. 13.8	DC	7.8
80 x 80 x 38	77.7	55		7 .. 13.8	DC	6.6
80 x 80 x 38	111.9	66		12 .. 27.6	DC	7.3
80 x 80 x 38	130.8	71		12 .. 27.6	DC	7.8
80 x 80 x 38	77.7	55		18 .. 26.4	DC	6.6
80 x 80 x 38	111.9	66		36 .. 53	DC	7.3
80 x 80 x 38	130.8	71		20 .. 58	DC	7.8
80 x 80 x 38	77.7	55		36 .. 53	DC	6.6
80 x 80 x 32	31.8	36		6 .. 15	DC	5.2
80 x 80 x 32	28.3	34		6 .. 15	DC	5
80 x 80 x 32	47.1	48		6 .. 12.6	DC	6.2
80 x 80 x 32	39.5	43		6 .. 15	DC	5.8
80 x 80 x 32	18.8	24		6 .. 15	DC	4
80 x 80 x 32	28.3	34		6 .. 15	DC	5
80 x 80 x 32	31.8	36		12 .. 31,5	DC	5.2
80 x 80 x 32	31.8	36		12 .. 28	DC	5.2
80 x 80 x 32	47.1	48		6 .. 12,6	DC	6.2
80 x 80 x 32	39.5	43		12 .. 31,5	DC	5.8
80 x 80 x 32	18.8	24		12 .. 31,5	DC	4
80 x 80 x 32	28.3	34		12 .. 31,5	DC	5
80 x 80 x 32	31.8	36		36 .. 56	DC	5.2
80 x 80 x 32	47.1	48		36 .. 56	DC	6.2
80 x 80 x 32	39.5	43		36 .. 56	DC	5.8
80 x 80 x 25	40.6	32		8 .. 15	DC	4.7
80 x 80 x 25	40.6	32		8 .. 15	DC	4.7
80 x 80 x 25	19.4	12		8 .. 15	DC	3.5
80 x 80 x 25	19.4	12		10 .. 14	DC	3.5
80 x 80 x 25	34.2	26		8 .. 15	DC	4.3
80 x 80 x 25	34.2	26		8 .. 14	DC	4.3
80 x 80 x 25	26.5	19		8 .. 15	DC	3.9
80 x 80 x 25	26.5	19		8 .. 14	DC	3.9
80 x 80 x 25	34.2	26		8 .. 14	DC	4.3
80 x 80 x 25	46.5	37		8 .. 13.2	DC	5
80 x 80 x 25	46.5	37		8 .. 15	DC	5
80 x 80 x 25	19.4	17		8 .. 15	DC	3.7
80 x 80 x 25	34.2	27		8 .. 15	DC	4.4
80 x 80 x 25	26.5	21		8 .. 15	DC	4
80 x 80 x 25	40.6	32		18 .. 28	DC	4.7
80 x 80 x 25	40.6	32		18 .. 28	DC	4.7
80 x 80 x 25	19.4	12		18 .. 28	DC	3.5
80 x 80 x 25	34.2	26		18 .. 28	DC	4.3
80 x 80 x 25	26.5	19		18 .. 28	DC	3.9
80 x 80 x 25	46.5	37		18 .. 26	DC	5
80 x 80 x 25	46.5	37		18 .. 28	DC	5
80 x 80 x 25	19.4	17		18 .. 28	DC	3.7
80 x 80 x 25	34.2	27		18 .. 28	DC	4.4
80 x 80 x 25	26.5	21		18 .. 28	DC	4
80 x 80 x 25	40.6	32		36 .. 56	DC	4.7
80 x 80 x 25	68.9	50		8 .. 15	DC	6.4
80 x 80 x 25	48.9	42		10.8 .. 13.2	DC	5.5
80 x 80 x 25	44.2	38		10.8 .. 13.2	DC	5.3
80 x 80 x 25	18.8	14		8 .. 15	DC	3.3
80 x 80 x 25	34.2	32		8 .. 15	DC	4.7
80 x 80 x 25	40.1	36		8 .. 15	DC	5
80 x 80 x 25	68.9	50		20 .. 26,4	DC	6.4
80 x 80 x 38	33.6	41	60	115	AC	5.5
80 x 80 x 38	35.9	34	60	115	AC	4.8
76 Ø x 37	26.5	30	60	115	AC
76 Ø x 37	27.7	32	60	115	AC
80 x 80 x 38	33.6	42	60	115	AC	5.7
80 x 80 x 38	35.9	35	60	115	AC	5
76 Ø x 37	26.5	31	60	115	AC
76 Ø x 37	27.7	33	60	115	AC
80 x 80 x 38	28.3	36	50	230	AC	5
80 x 80 x 38	29.5	30	50	230	AC	4.4
76 Ø x 37	22.4	25	50	230	AC
76 Ø x 37	23.6	27	50	230	AC
80 x 80 x 38	28.3	37	50	230	AC	5.1
80 x 80 x 38	29.5	31	50	230	AC	4.5
76 Ø x 37	22.4	26	50	230	AC
76 Ø x 37	23.6	28	50	230	AC
80 x 80 x 38	26.5	34	60	115	AC	4.8
80 x 80 x 38	27.7	28	60	115	AC	4.3
76 Ø x 37	20	23	60	115	AC
76 Ø x 37	21.2	24	60	115	AC
80 x 80 x 38	20	29	60	115	AC	4.3
80 x 80 x 38	21.2	21	60	115	AC	3.7
76 Ø x 37	15.3	18	60	115	AC
76 Ø x 37	15.9	18	60	115	AC
80 x 80 x 38	21.2	31	50	230	AC	4.6
80 x 80 x 38	21.8	24	50	230	AC	3.9
76 Ø x 37	17.7	19	50	230	AC
76 Ø x 37	18.3	20	50	230	AC
80 x 80 x 38	17.1	26	50	230	AC	4.1
80 x 80 x 38	17.7	18	50	230	AC	3.3
76 Ø x 37	13.5	15	50	230	AC
76 Ø x 37	14.1	15	50	230	AC
119 x 119 x 25	79.5	42	60	115	AC	5.4
119 x 119 x 25	79.5	42	60	115	AC	5.4
119 x 119 x 25	58.9	34	60	115	AC	4.6
119 x 119 x 25	65.4	37	60	115	AC	5
119 x 119 x 25	68.9	37	50	230	AC	5
119 x 119 x 25	68.9	37	50	230	AC	5
119 x 119 x 25	49.5	29	50	230	AC	4.4
119 x 119 x 25	61.3	35	50	230	AC	4.7
98.50 x 130	32.4	33	50/60		DC	4.5
98.5 x 130	31.2	33	50/60		DC	4.4
92 x 92 x 38	84.8	55	50	115	AC	6.4
119 x 119 x 32	120.2	51	50	115	AC	6.4
119 x 119 x 25	120.7	53	50	115	AC	6.2
172 Ø x 51	206.2	50	50	115	AC	5.7
80 x 80 x 32	47.1	48	50	115	AC	6.2
98.5 x 130	47.1	35	50/60	85 .. 265	DC	4.7
119 x 119 x 38	103.1	42		85 .. 132	AC	5.3
119 x 119 x 38	94.2	39		195 .. 265	AC	5.1
119 x 119 x 38	103.1	42		195 .. 265	AC	5.3
119 x 119 x 38	58.9	25		195 .. 265	AC	4.1
119 x 119 x 38	86.6	36		195 .. 265	AC	4.9
130	141.4		50/60	230	AC
130	162		50/60	230	AC
130	123.7		50/60	115	AC
130	162		50/60	115	AC
200	642	60	-	36 .. 57	DC
200	642	60		16 .. 28	DC
250	1130.9	70		16 .. 28	DC
250	1130.9	70		36 .. 57	DC
142	188.5	51	50	115	AC
142	223.8	56	60	115	AC
142	188.5	51	50	115	AC
142	223.8	56	60	115	AC
142	164.9	48	50	115	AC
142	179.6	50	60	115	AC
143	220.9	55	50	115	AC
143	259.2	60	60	115	AC
143	259.2	60	60	115	AC
143	247.4	54	50	115	AC
143			60	115	AC
143	294.5	58	60	115	AC
143	247.4	54	50	115	AC
143	294.5	58	60	115	AC
200	494.8	56	50	115	AC
200	494.8	56	60	115	AC
200	544.8	59	50	115	AC
200	606.7	61	60	115	AC
200	544.8	59	50	115	AC
200	606.7	61	60	115	AC
200	606.7	61	60	115	AC
200	544.8	59	50	115	AC
200	606.7	61	60	115	AC
200	518.3	58	50	230	AC
200	589	61	60	230	AC
200	544.8	59	50	115	AC
200	606.7	61	60	115	AC
250	1113.2	69	50	115	AC
250	1207.5	71	60	115	AC
250	1098.5	69	50	230	AC
250	1160.3	70	60	230	AC
250	1095.5	67	50	115	AC
250	1166.2	70	60	115	AC
250	1166.2	70	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	194.4	53	50	115	AC
130	223.8	57	60	115	AC
130	223.8	60	50	115	AC
130	250.3	62	60	115	AC
200	265.1	40	50	230	AC
200	309.2	44	60	230	AC

Legend

Dimensions = Dimensions / Size
q_V = Air flow
L_pA = Sound pressure level

f = Frequency
U_N = Nominal voltage (range)
AC/DC = Type of voltage

L_wA = Sound power level

SẢN PHẨM TƯƠNG ĐƯƠNG


in mm	cfm	in dB(A)	in Hz	in V		in Bel
220 x 200 x 51	553.7	66		16 .. 36	DC	7.4
220 x 200 x 51	465.3	62		16 .. 30	DC	7.1
220 x 200 x 51	718.6	72		36 .. 72	DC	8.2
220 x 200 x 51	553.7	66		36 .. 72	DC	7.4
220 x 200 x 51	465.3	62		36 .. 57	DC	7.1
25 x 25 x 8	2.7	23		10 .. 14	DC	4.4
25 x 25 x 8	2	15		10 .. 14	DC
25 x 25 x 8	2.7	23		4.5 .. 5.5	DC	4.4
25 x 25 x 8	1.4	5		4.5 .. 5.5	DC
25 x 25 x 8	2.1	16		4.5 .. 5.5	DC
92 x 92 x 38	86	55		7 .. 15	DC	6.4
92 x 92 x 38	139.6	69		6 .. 13.8	DC	7.8
92 x 92 x 38	164.9	73		6 .. 13.8	DC	8.2
92 x 92 x 38	76.6	51		7 .. 13.8	DC	6.1
92 x 92 x 38	86	55		12 .. 30	DC	6.4
92 x 92 x 38	139.6	69		12 .. 27.6	DC	7.8
92 x 92 x 38	164.9	73		12 .. 27.6	DC	8.2
92 x 92 x 38	76.6	51		11 .. 28	DC	6.1
92 x 92 x 38	86	55		36 .. 53	DC	6.4
92 x 92 x 38	139.6	69		20 .. 58	DC	7.8
92 x 92 x 38	164.9	73		20 .. 58	DC	8.2
92 x 92 x 38	76.6	51		36 .. 56	DC	6.1
92 x 92 x 38	159	64		7 .. 13,2	DC	7.6
92 x 92 x 38	159	64		14 .. 26,4	DC	7.6
92 x 92 x 38	159	64		36 .. 56	DC	7.6
92 x 92 x 38	138.4	59		36 .. 56	DC	7
92 x 92 x 32	54.8	38		6 .. 15	DC	5.1
92 x 92 x 32	78.3	48		6 .. 15	DC	5.9
92 x 92 x 32	63	42		6 .. 15	DC	5.4
92 x 92 x 32	33	24		6 .. 15	DC	4.1
92 x 92 x 32	40.1	29		6 .. 15	DC	4.5
92 x 92 x 32	47.1	35		6 .. 15	DC	4.7
92 x 92 x 32	54.8	38		12 .. 28	DC	5.1
92 x 92 x 32	78.3	50		12 .. 28	DC	6
92 x 92 x 32	63	42		12 .. 28	DC	5.4
92 x 92 x 32	47.1	35		12 .. 28	DC	4.7
92 x 92 x 32	47.1	37		36 .. 60	DC	5.2
92 x 92 x 32	54.8	38		36 .. 60	DC	5.1
92 x 92 x 32	78.3	50		36 .. 58	DC	6
92 x 92 x 32	47.1	35		36 .. 60	DC	4.7
92 x 92 x 25	49.5	32		8 .. 15	DC	4.7
92 x 92 x 25	49.5	32		8 .. 15	DC	4.7
92 x 92 x 25	55.4	36		8 .. 15	DC	5
92 x 92 x 25	60.1	39		8 .. 13.2	DC	5.1
92 x 92 x 25	35.9	23		8 .. 15	DC	4
92 x 92 x 25	42.4	28		8 .. 15	DC	4.3
92 x 92 x 25	42.4	28		8 .. 14	DC	4.3
92 x 92 x 25	49.5	32		8 .. 12.6	DC	4.7
92 x 92 x 25	55.4	36		8 .. 15	DC	5
92 x 92 x 25	60.1	39		8 .. 13.2	DC	5.1
92 x 92 x 25	60.1	39		8 .. 15	DC	5.1
92 x 92 x 25	35.9	23		8 .. 15	DC	4
92 x 92 x 25	42.4	28		8 .. 15	DC	4.3
92 x 92 x 25	49.5	32		18 .. 28	DC	4.7
92 x 92 x 25	55.4	36		18 .. 26	DC	5
92 x 92 x 25	60.1	39		18 .. 26	DC	5.1
92 x 92 x 25	60.1	39		18 .. 28	DC	5.1
92 x 92 x 25	35.9	23		18 .. 28	DC	4
92 x 92 x 25	42.4	28		18 .. 28	DC	4.3
92 x 92 x 25	55.4	36		18 .. 26	DC	5
92 x 92 x 25	60.1	39		18 .. 26	DC	5.1
92 x 92 x 25	60.1	39		18 .. 28	DC	5.1
92 x 92 x 25	35.9	23		18 .. 28	DC	4
92 x 92 x 25	42.4	28		18 .. 28	DC	4.3
92 x 92 x 25	49.5	32		36 .. 56	DC	4.7
40 x 40 x 20	5.9	18		4.5 .. 5.5	DC	3.8
40 x 40 x 20	5.9	18		10 .. 14	DC	3.8
40 x 40 x 20	5.9	18		20 .. 28	DC	3.8
92 x 92 x 38	43	35	60	115	AC	4.6
92 x 92 x 38	43	36	60	115	AC	4.7
92 x 92 x 38	39.5	32	50	230	AC	4.4
92 x 92 x 38	39.5	33	50	230	AC	4.5
92 x 92 x 38	52.4	41	60	115	AC	5.1
92 x 92 x 38	52.4	42	60	115	AC	5.2
92 x 92 x 38	44.2	36	50	230	AC	4.8
92 x 92 x 38	44.2	37	50	230	AC	4.9
92 x 92 x 38	31.8	26	60	115	AC	3.9
92 x 92 x 38	35.3	29	60	115	AC	4.2
92 x 92 x 38	28.9	24	50	230	AC	3.7
92 x 92 x 38	31.8	26	50	230	AC	3.9
92 x 92 x 25	41.2	40	60	115	AC	5.1
92 x 92 x 25	23	27	60	115	AC	4
92 x 92 x 25	31.2	34	60	115	AC	4.6
92 x 92 x 25	41.2	40	60	115	AC	5.1
92 x 92 x 25	23	27	60	115	AC	4
92 x 92 x 25	31.2	34	60	115	AC	4.6
92 x 92 x 25	34.8	35	50	230	AC	4.7
92 x 92 x 25	18.3	24	50	230	AC	3.8
92 x 92 x 25	26.5	29	50	230	AC	4.2
92 x 92 x 25	34.8	35	50	230	AC	4.7
92 x 92 x 25	18.3	24	50	230	AC	3.8
92 x 92 x 25	26.5	29	50	230	AC	4.2
40 x 40 x 10	4.7	22.1		4.5 .. 5.5	DC	4.4
40 x 40 x 10	5.3	26		4.5 .. 5.5	DC	4.6
119 x 119 x 38	182.6	65		9 .. 15	DC	7.2
119 x 119 x 38	209.1	67		9 .. 14	DC	7.4
119 x 119 x 38	153.1	60		9 .. 15	DC	6.8
119 x 119 x 38	294.5	76		16 .. 30	DC	8.5
119 x 119 x 38	335.7	78		16 .. 30	DC	8.9
119 x 119 x 38	182.6	65		16 .. 30	DC	7.2
119 x 119 x 38	209.1	67		16 .. 30	DC	7.4
119 x 119 x 38	229.7	70		16 .. 30	DC	7.6
119 x 119 x 38	259.2	73		16 .. 30	DC	8.1
119 x 119 x 38	153.1	60		16 .. 30	DC	6.8
119 x 119 x 38	294.5	76		36 .. 60	DC	8.5
119 x 119 x 38	335.7	78		36 .. 60	DC	8.9
119 x 119 x 38	182.6	65		36 .. 60	DC	7.2
119 x 119 x 38	209.1	67		36 .. 60	DC	7.4
119 x 119 x 38	229.7	70		36 .. 60	DC	7.6
119 x 119 x 38	259.2	73		36 .. 60	DC	8.1
119 x 119 x 38	153.1	60		36 .. 60	DC	6.8
40 x 40 x 10	4.7	22.1		10 .. 14	DC	4.4
40 x 40 x 10	4.7	22.1		10 .. 14	DC	4.4
40 x 40 x 10	5.3	26		10 .. 14	DC	4.6
40 x 40 x 10	5.3	26		10 .. 14	DC	4.6
40 x 40 x 10	3.5	17		10 .. 14	DC	3.8
40 x 40 x 10	3.5	17		10 .. 14	DC	3.8
40 x 40 x 20	8	29		10 .. 14	DC	4.7
40 x 40 x 25	11.2	39		8 .. 14	DC	5.5
40 x 40 x 25	13	43		8 .. 13.5	DC	5.8
40 x 40 x 25	14.1	46		8 .. 13.5	DC	6.1
40 x 40 x 20	5.9	18		10 .. 14	DC	3.8
40 x 40 x 10	4.7	22.1		20 .. 28	DC	4.4
40 x 40 x 10	5.3	26		21.6 .. 26.4	DC	4.4
40 x 40 x 20	8	29		20 .. 26.5	DC	4.7
40 x 40 x 25	11.2	39		18 .. 27	DC	5.5
40 x 40 x 25	13	43		18 .. 27	DC	5.8
40 x 40 x 25	14.1	46		18 .. 27	DC	6.1
119 x 119 x 38	94.2	44		6 .. 15	DC	5.3
119 x 119 x 38	106	49		6 .. 15	DC	5.7
119 x 119 x 38	139.6	57		7 .. 14	DC	6.5
119 x 119 x 38	94.2	44		12 .. 31,5	DC	5.3
119 x 119 x 38	106	49		12 .. 31,5	DC	5.7
119 x 119 x 38	139.6	57		12 .. 28	DC	6.5
119 x 119 x 38	94.2	44		12 .. 31,5	DC	5.3
119 x 119 x 38	94.2	44		36 .. 60	DC	5.3
119 x 119 x 38	94.2	44		36 .. 60	DC	5.3
40 x 40 x 28	22.4	54		8 .. 13,8	DC	6.6
40 x 40 x 28	14.1	42		8 .. 13,8	DC	5.5
40 x 40 x 28	18.3	48		8 .. 13,8	DC	6
40 x 40 x 28	22.4	54		16 .. 26,4	DC	6.6
40 x 40 x 28	14.1	42		16 .. 28	DC	5.5
40 x 40 x 28	18.3	48		16 .. 28	DC	6
119 x 119 x 32	100.1	45		6 .. 15	DC	5.8
119 x 119 x 32	56	30		6 .. 15	DC	4.3
119 x 119 x 32	82.5	39		6 .. 15	DC	5.3
119 x 119 x 32	56	30		6 .. 15	DC	4.3
119 x 119 x 32	82.5	39		6 .. 15	DC	5.3
119 x 119 x 32	81.3	39		8 .. 15	DC	5.3
119 x 119 x 32	82.5	39		8 .. 15	DC	5.3
119 x 119 x 32	100.1	45		8 .. 13.2	DC	5.8
119 x 119 x 32	106	47		6 .. 15	DC	6.1
119 x 119 x 32	120.2	51		6 .. 13.2	DC	6.4
119 x 119 x 32	100.1	45		12 .. 28	DC	5.8
119 x 119 x 32	100.1	45		12 .. 28	DC	5.8
119 x 119 x 32	56	30		12 .. 28	DC	4.3
119 x 119 x 32	82.5	39		12 .. 28	DC	5.3
119 x 119 x 32	100.1	45		18 .. 32	DC	5.8
119 x 119 x 32	100.1	45		21 .. 27	DC	5.8
119 x 119 x 32	106	47		12 .. 28	DC	6.1
119 x 119 x 32	120.2	51		12 .. 26.5	DC	6.4
119 x 119 x 32	100.1	45		36 .. 53	DC	5.8
119 x 119 x 32	82.5	39		36 .. 56	DC	5.3
119 x 119 x 32	100.1	45		40 .. 53	DC	5.8
119 x 119 x 38	167.9	55		7 .. 14.5	DC	6.4
119 x 119 x 25	100.1	43		8 .. 12.6	DC	5.3
119 x 119 x 25	100.1	43		8 .. 12.6	DC	5.3
119 x 119 x 25	55.4	26		7 .. 14	DC	3.9
127 x 127	53.6	26		7 .. 15	DC	3.9
119 x 119 x 25	82.5	38		7 .. 12.6	DC	4.8
119 x 119 x 25	67.1	32		7 .. 12.6	DC	4.3
119 x 119 x 25	82.5	38		7 .. 12.6	DC	4.8
119 x 119 x 25	67.1	32		7 .. 12.6	DC	4.3
119 x 119 x 25	132.5	55		9 .. 13.2	DC	6.7
119 x 119 x 38	141.4	50		7 .. 14	DC	6
119 x 119 x 38	88.4	37		7 .. 14	DC	5
119 x 119 x 38	108.4	42		7 .. 14	DC	5.3
119 x 119 x 38	120.7	46		7 .. 14	DC	5.6
119 x 119 x 38	167.9	55		18 .. 28	DC	6.4
119 x 119 x 25	100.1	43		12 .. 28	DC	5.3
119 x 119 x 25	100.1	43		12 .. 28	DC	5.3
119 x 119 x 25	55.4	26		18 .. 28	DC	3.9
119 x 119 x 25	82.5	38		12 .. 28	DC	4.8
119 x 119 x 25	132.5	55		18 .. 26.4	DC	6.7
119 x 119 x 25	117.8	52		14 .. 28	DC	6.5
119 x 119 x 38	141.4	50		18 .. 28	DC	6
119 x 119 x 38	167.9	55		16 .. 28	DC	6.4
119 x 119 x 38	88.4	37		18 .. 28	DC	5
119 x 119 x 38	108.4	42		18 .. 28	DC	5.3
119 x 119 x 38	120.7	46		18 .. 28	DC	5.6
119 x 119 x 38	167.9	55		36 .. 60	DC	6.4
119 x 119 x 25	100.1	43		28 .. 53	DC	5.3
119 x 119 x 25	100.1	43		28 .. 53	DC	5.3
119 x 119 x 25	132.5	55		36 .. 53	DC	6.7
119 x 119 x 38	141.4	50		36 .. 60	DC	6
119 x 119 x 38	88.4	37		36 .. 60	DC	5
119 x 119 x 38	108.4	42		36 .. 60	DC	5.3
119 x 119 x 38	120.7	46		36 .. 60	DC	5.6
119 x 119 x 38	99.5	48	60	115	AC	5.7
119 x 119 x 38	88.9	45	60	115	AC	5.4
119 x 119 x 38	70.7	32	60	115	AC	4.4
119 x 119 x 38	70.7	32	60	115	AC	4.4
119 x 119 x 38	85.4	44	50	230	AC	5.4
119 x 119 x 38	72.4	41	50	230	AC	5.2
119 x 119 x 38	67.7	30	50	230	AC	4.3
119 x 119 x 38	67.7	30	50	230	AC	4.3
119 x 119 x 38	106	50	60	115	AC	5.7
108 Ø x 37	82.5	45	60	115	AC
119 x 119 x 38	106	45	60	115	AC	5.6
119 x 119 x 38	106	51	60	115	AC	5.8
113 Ø x 37	86.6	44	60	115	AC
108 Ø x 37	82.5	45	60	115	AC
119 x 119 x 38	106	45	60	115	AC	5.6
119 x 119 x 38	94.2	46	50	230	AC	5.4
113 Ø x 37	81.3	41	50	230	AC
108 Ø x 37	73.6	42	50	230	AC
119 x 119 x 38	94.2	40	50	230	AC	5.3
119 x 119 x 38	94.2	47	50	230	AC	5.5
113 Ø x 37	81.3	42	50	230	AC
108 Ø x 37	73.6	42	50	230	AC
119 x 119 x 38	94.2	40	50	230	AC	5.3
119 x 119 x 38	57.1	32	60	115	AC	4.3
119 x 119 x 38	61.8	28	60	115	AC	4.1
119 x 119 x 38	61.8	28	60	115	AC	4.1
119 x 119 x 38	50.1	26	60	115	AC	4.1
119 x 119 x 38	58.9	32	50	230	AC	4.4
119 x 119 x 38	58.9	26	50	230	AC	4
119 x 119 x 38	58.9	26	50	230	AC	4
119 x 119 x 38	47.1	25	50	230	AC	4
135 x 135 x 38	153.1	48		6 .. 15	DC	6.1
135 x 135 x 38	153.1	48		12 .. 30	DC	6.1
135 x 135 x 38	153.1	48		24 .. 60	DC	6.1
135 x 135 x 38	71.9	28		24 .. 60	DC	4.1
50 x 50 x 15	11.8	30		10.8 .. 13.2	DC	4.5
50 x 50 x 15	11.8	30		10.8 .. 13.2	DC	4.5
50 x 50 x 15	6.5	18		11.5 .. 13.2	DC	3.7
50 x 50 x 15	11.8	30		21.6 .. 26.4	DC	4.5
127 x 127 x 38	148.4	51		7 .. 14	DC	6
127 x 127 x 38	200.3	58		9 .. 15	DC	6.6
127 x 127 x 38	110.1	43		7 .. 14.5	DC	5.3
127 x 127 x 38	127.2	46		7 .. 14	DC	5.6
127 x 127 x 38	148.4	51		12 .. 28	DC	6
127 x 127 x 38	200.3	58		16 .. 30	DC	6.6
127 x 127 x 38	110.1	43		12 .. 28	DC	5.3
127 x 127 x 38	127.2	46		12 .. 28	DC	5.6
127 x 127 x 38	148.4	51		36 .. 56	DC	6
127 x 127 x 38	200.3	58		36 .. 60	DC	6.6
127 x 127 x 38	110.1	43		36 .. 56	DC	5.3
127 x 127 x 38	127.2	46		36 .. 56	DC	5.6
140 x 140 x 51	241.5	70		8 .. 16	DC	7.7
140 x 140 x 51	241.5	70		16 .. 36	DC	7.7
140 x 140 x 51	200.3	64		16 .. 28	DC	7.2
140 x 140 x 51	288.6	75		16 .. 36	DC	8.1
140 x 140 x 51	394.6	79		36 .. 72	DC	8.8
140 x 140 x 51	288.6	75		36 .. 72	DC	8.1
140 x 140 x 51	241.5	70		36 .. 72	DC	7.7
140 x 140 x 51	200.3	64		36 .. 72	DC	7.2
135 x 135 x 38	159	50	60	115	AC	6.2
135 x 135 x 38	138.4	46	50	230	AC	5.9
127 x 127 x 38	121.3	46	60	115	AC	5.7
127 x 127 x 38	121.3	47	60	115	AC	5.8
127 x 127 x 38	95.4	40	60	115	AC	4.9
127 x 127 x 38	106	43	50	230	AC	5.4
127 x 127 x 38	106	44	50	230	AC	5.5
127 x 127 x 38	88.4	37	50	230	AC	4.9
172 Ø x 51	259.2	60	60	115	AC	6.4
172 Ø x 51	294.5	58	60	115	AC	6.7
60 x 60 x 15	17.1	27		4.5 .. 5.2	DC	4.4
172 Ø x 51	220.9	55	50	230	AC	5.9
172 Ø x 51	247.4	54	50	230	AC	6.3
60 x 60 x 15	17.1	27		10.8 .. 13.2	DC	4.4
60 x 60 x 15	17.1	27		10.8 .. 12.6	DC	4.4
60 x 60 x 15	19.4	31		10 .. 13.2	DC	4.8
60 x 60 x 15	11.2	16		11.5 .. 13.2	DC	3.6
60 x 60 x 15	11.2	16		11.5 .. 14	DC	3.6
60 x 60 x 32	41.2	53		7 .. 13.6	DC	6.4
60 x 60 x 25	12.4	16		8 .. 15	DC	3.6
60 x 60 x 25	20.6	28		8 .. 15	DC	4.6
60 x 60 x 25	20.6	28		8 .. 12.6	DC	4.6
60 x 60 x 25	14.7	19		8 .. 15	DC	3.9
60 x 60 x 25	24.1	35		8 .. 12.6	DC	5
60 x 60 x 25	24.1	35		8 .. 12.6	DC	5
60 x 60 x 25	25.3	37		8 .. 15	DC	5.3
60 x 60 x 25	33	41		8 .. 15	DC	5.7
60 x 60 x 25	12.4	16		8 .. 15	DC	3.6
60 x 60 x 25	20.6	28		8 .. 15	DC	4.6
60 x 60 x 25	20.6	28		8 .. 12.6	DC	4.6
60 x 60 x 25	14.7	19		8 .. 15	DC	3.9
60 x 60 x 25	24.7	35		8 .. 15	DC	5
60 x 60 x 25	24.1	35		8 .. 12.6	DC	5
60 x 60 x 15	17.1	27		21.6 .. 26.4	DC	4.4
60 x 60 x 32	48.3	62		18 .. 30	DC	7.6
60 x 60 x 32	41.2	53		14 .. 26.4	DC	6.4
60 x 60 x 25	12.4	16		18 .. 28	DC	3.6
60 x 60 x 25	20.6	28		18 .. 28	DC	4.6
60 x 60 x 25	14.7	19		18 .. 28	DC	3.9
60 x 60 x 25	25.3	37		18 .. 26	DC	5.3
60 x 60 x 25	33	41		18 .. 26	DC	5.7
60 x 60 x 25	33	41		18 .. 28	DC	5.7
60 x 60 x 25	12.4	16		18 .. 28	DC	3.6
60 x 60 x 25	20.6	28		18 .. 28	DC	4.6
60 x 60 x 25	14.7	19		18 .. 28	DC	3.9
60 x 60 x 25	24.7	35		18 .. 28	DC	5
60 x 60 x 32	48.3	62		38 .. 58	DC	7.6
60 x 60 x 32	41.2	53		36 .. 56	DC	6.4
60 x 60 x 25	20.6	28		36 .. 56	DC	4.6
60 x 60 x 25	24.7	35		36 .. 56	DC	5
60 x 60 x 25	39.5	48		8 .. 13.2	DC	5.9
60 x 60 x 25	27.1	39		8 .. 15	DC	5.1
60 x 60 x 25	33	43		8 .. 15	DC	5.6
60 x 60 x 25	17.7	29		8 .. 15	DC	4.3
60 x 60 x 25	17.7	29		8 .. 15	DC	4.3
60 x 60 x 25	23.6	35		8 .. 15	DC	4.7
60 x 60 x 25	27.1	39		18 .. 28	DC	5.1
60 x 60 x 25	33	43		18 .. 28	DC	5.6
60 x 60 x 25	12.4	20		18 .. 28	DC	3.7
60 x 60 x 25	17.7	29		12 .. 28	DC	4.3
60 x 60 x 25	23.6	35		12 .. 28	DC	4.7
60 x 60 x 25	33	43		36 .. 60	DC	5.6
172 Ø x 51	353.4	60		8 .. 16	DC	7.3
172 Ø x 51	359.3			8 .. 16	DC
172 Ø x 51	353.4	60		16 .. 36	DC	7.3
172 Ø x 51	418.2	69		16 .. 36	DC	7.9
172 Ø x 51	321	58		16 .. 30	DC	6.9
172 Ø x 51	232.7	51		16 .. 30	DC	6
172 Ø x 51	276.8	56		16 .. 30	DC	6.5
172 x 160 x 51	418.2	69		16 .. 36	DC	7.9
172 Ø x 51	353.4	60		16 .. 30	DC	7.3
172 Ø x 51	318.1			16 .. 36	DC	6.9
172 Ø x 51	571.3			16 .. 36	DC	8.3
172 Ø x 51	547.8	75		36 .. 72	DC	8.4
172 Ø x 51	418.2	69		36 .. 72	DC	7.9
172 Ø x 51	353.4	60		36 .. 72	DC	7.3
172 Ø x 51	321	58		36 .. 72	DC	6.9
172 x 160 x 51	547.8	75		36 .. 72	DC	8.4
172 Ø x 51	353.4	60		36 .. 60	DC	7.3
172 Ø x 51	403.5			36 .. 72	DC	7.5
172 Ø x 51	606.7	83		36 .. 72	DC	8.4
60 x 60 x 25	25.9	35		10,8 .. 13,2	DC	5.4
60 x 60 x 25	23.6	33		6 .. 15	DC	5.2
60 x 60 x 25	34.2	44		18 .. 28	DC	6.1
60 x 60 x 25	23.6	34		12 .. 30	DC	5.1
60 x 60 x 25	34.2	44		18 .. 28	DC	6.1
60 x 60 x 25	25.9	35		40 .. 60	DC	5.4
172 x 150 x 51	206.2	52		8 .. 15	DC	6
172 x 150 x 51	241.5	57		12 .. 28	DC	6.4
172 x 150 x 51	282.7	63		12 .. 28	DC	7.1
172 x 150 x 51	206.2	52		12 .. 32	DC	6
172 x 150 x 51	241.5	57		12 .. 28	DC	6.4
172 x 150 x 51	353.4	65		16 .. 28	DC	7.4
172 x 150 x 51	241.5	57		28 .. 60	DC	6.4
172 x 150 x 51	282.7	63		28 .. 60	DC	7.1
172 x 150 x 51	206.2	52		28 .. 60	DC	6
172 x 150 x 51	241.5	57		28 .. 60	DC	6.4
172 x 150 x 72	353.4	65		40 .. 55	DC	7.4
172 x 150 x 51	530.1	78		36 .. 72	DC	8.6
150 x 172 x 38	223.8	56	60	115	AC	6.8
150 x 172 x 38	188.5	51	50	230	AC	6.4
150 Ø x 38	181.4	53		6 .. 15	DC	6.2
150 Ø x 38	181.4	53		12 .. 30	DC	6.2
150 Ø x 38	212	58		12 .. 26.5	DC	6.7
150 Ø x 38	181.4	53		24 .. 60	DC	6.2
70 x 70 x 15	25.9	38		8 .. 13.8	DC	5.3
70 x 70 x 15	16.5	25		8 .. 13.8	DC	4.7
70 x 70 x 15	21.2	32		8 .. 13.8	DC	5
70 x 70 x 15	25.9	38		18 .. 28	DC	5.3
150 Ø x 55	212	53		6 .. 15	DC	6.2
150 Ø x 55	212	53		12 .. 30	DC	6.2
150 Ø x 55	212	53		24 .. 60	DC	6.2
150 Ø x 55	250.3	62	60	115	AC	6.9
150 Ø x 55	223.8	60	50	230	AC	6.8
150 Ø x 55	223.8	53	60	115	AC	6.4
150 Ø x 55	223.8	53	60	115	AC	6.4
150 Ø x 55	191.4	49	50	230	AC	6
150 Ø x 55	191.4	49	50	230	AC	6
80 x 80 x 38	111.9	66		6 .. 13.8	DC	7.3
80 x 80 x 38	130.8	71		6 .. 13.8	DC	7.8
80 x 80 x 38	77.7	55		7 .. 13.8	DC	6.6
80 x 80 x 38	111.9	66		12 .. 27.6	DC	7.3
80 x 80 x 38	130.8	71		12 .. 27.6	DC	7.8
80 x 80 x 38	77.7	55		18 .. 26.4	DC	6.6
80 x 80 x 38	111.9	66		36 .. 53	DC	7.3
80 x 80 x 38	130.8	71		20 .. 58	DC	7.8
80 x 80 x 38	77.7	55		36 .. 53	DC	6.6
80 x 80 x 32	31.8	36		6 .. 15	DC	5.2
80 x 80 x 32	28.3	34		6 .. 15	DC	5
80 x 80 x 32	47.1	48		6 .. 12.6	DC	6.2
80 x 80 x 32	39.5	43		6 .. 15	DC	5.8
80 x 80 x 32	18.8	24		6 .. 15	DC	4
80 x 80 x 32	28.3	34		6 .. 15	DC	5
80 x 80 x 32	31.8	36		12 .. 31,5	DC	5.2
80 x 80 x 32	31.8	36		12 .. 28	DC	5.2
80 x 80 x 32	47.1	48		6 .. 12,6	DC	6.2
80 x 80 x 32	39.5	43		12 .. 31,5	DC	5.8
80 x 80 x 32	18.8	24		12 .. 31,5	DC	4
80 x 80 x 32	28.3	34		12 .. 31,5	DC	5
80 x 80 x 32	31.8	36		36 .. 56	DC	5.2
80 x 80 x 32	47.1	48		36 .. 56	DC	6.2
80 x 80 x 32	39.5	43		36 .. 56	DC	5.8
80 x 80 x 25	40.6	32		8 .. 15	DC	4.7
80 x 80 x 25	40.6	32		8 .. 15	DC	4.7
80 x 80 x 25	19.4	12		8 .. 15	DC	3.5
80 x 80 x 25	19.4	12		10 .. 14	DC	3.5
80 x 80 x 25	34.2	26		8 .. 15	DC	4.3
80 x 80 x 25	34.2	26		8 .. 14	DC	4.3
80 x 80 x 25	26.5	19		8 .. 15	DC	3.9
80 x 80 x 25	26.5	19		8 .. 14	DC	3.9
80 x 80 x 25	34.2	26		8 .. 14	DC	4.3
80 x 80 x 25	46.5	37		8 .. 13.2	DC	5
80 x 80 x 25	46.5	37		8 .. 15	DC	5
80 x 80 x 25	19.4	17		8 .. 15	DC	3.7
80 x 80 x 25	34.2	27		8 .. 15	DC	4.4
80 x 80 x 25	26.5	21		8 .. 15	DC	4
80 x 80 x 25	40.6	32		18 .. 28	DC	4.7
80 x 80 x 25	40.6	32		18 .. 28	DC	4.7
80 x 80 x 25	19.4	12		18 .. 28	DC	3.5
80 x 80 x 25	34.2	26		18 .. 28	DC	4.3
80 x 80 x 25	26.5	19		18 .. 28	DC	3.9
80 x 80 x 25	46.5	37		18 .. 26	DC	5
80 x 80 x 25	46.5	37		18 .. 28	DC	5
80 x 80 x 25	19.4	17		18 .. 28	DC	3.7
80 x 80 x 25	34.2	27		18 .. 28	DC	4.4
80 x 80 x 25	26.5	21		18 .. 28	DC	4
80 x 80 x 25	40.6	32		36 .. 56	DC	4.7
80 x 80 x 25	68.9	50		8 .. 15	DC	6.4
80 x 80 x 25	48.9	42		10.8 .. 13.2	DC	5.5
80 x 80 x 25	44.2	38		10.8 .. 13.2	DC	5.3
80 x 80 x 25	18.8	14		8 .. 15	DC	3.3
80 x 80 x 25	34.2	32		8 .. 15	DC	4.7
80 x 80 x 25	40.1	36		8 .. 15	DC	5
80 x 80 x 25	68.9	50		20 .. 26,4	DC	6.4
80 x 80 x 38	33.6	41	60	115	AC	5.5
80 x 80 x 38	35.9	34	60	115	AC	4.8
76 Ø x 37	26.5	30	60	115	AC
76 Ø x 37	27.7	32	60	115	AC
80 x 80 x 38	33.6	42	60	115	AC	5.7
80 x 80 x 38	35.9	35	60	115	AC	5
76 Ø x 37	26.5	31	60	115	AC
76 Ø x 37	27.7	33	60	115	AC
80 x 80 x 38	28.3	36	50	230	AC	5
80 x 80 x 38	29.5	30	50	230	AC	4.4
76 Ø x 37	22.4	25	50	230	AC
76 Ø x 37	23.6	27	50	230	AC
80 x 80 x 38	28.3	37	50	230	AC	5.1
80 x 80 x 38	29.5	31	50	230	AC	4.5
76 Ø x 37	22.4	26	50	230	AC
76 Ø x 37	23.6	28	50	230	AC
80 x 80 x 38	26.5	34	60	115	AC	4.8
80 x 80 x 38	27.7	28	60	115	AC	4.3
76 Ø x 37	20	23	60	115	AC
76 Ø x 37	21.2	24	60	115	AC
80 x 80 x 38	20	29	60	115	AC	4.3
80 x 80 x 38	21.2	21	60	115	AC	3.7
76 Ø x 37	15.3	18	60	115	AC
76 Ø x 37	15.9	18	60	115	AC
80 x 80 x 38	21.2	31	50	230	AC	4.6
80 x 80 x 38	21.8	24	50	230	AC	3.9
76 Ø x 37	17.7	19	50	230	AC
76 Ø x 37	18.3	20	50	230	AC
80 x 80 x 38	17.1	26	50	230	AC	4.1
80 x 80 x 38	17.7	18	50	230	AC	3.3
76 Ø x 37	13.5	15	50	230	AC
76 Ø x 37	14.1	15	50	230	AC
119 x 119 x 25	79.5	42	60	115	AC	5.4
119 x 119 x 25	79.5	42	60	115	AC	5.4
119 x 119 x 25	58.9	34	60	115	AC	4.6
119 x 119 x 25	65.4	37	60	115	AC	5
119 x 119 x 25	68.9	37	50	230	AC	5
119 x 119 x 25	68.9	37	50	230	AC	5
119 x 119 x 25	49.5	29	50	230	AC	4.4
119 x 119 x 25	61.3	35	50	230	AC	4.7
98.50 x 130	32.4	33	50/60		DC	4.5
98.5 x 130	31.2	33	50/60		DC	4.4
92 x 92 x 38	84.8	55	50	115	AC	6.4
119 x 119 x 32	120.2	51	50	115	AC	6.4
119 x 119 x 25	120.7	53	50	115	AC	6.2
172 Ø x 51	206.2	50	50	115	AC	5.7
80 x 80 x 32	47.1	48	50	115	AC	6.2
98.5 x 130	47.1	35	50/60	85 .. 265	DC	4.7
119 x 119 x 38	103.1	42		85 .. 132	AC	5.3
119 x 119 x 38	94.2	39		195 .. 265	AC	5.1
119 x 119 x 38	103.1	42		195 .. 265	AC	5.3
119 x 119 x 38	58.9	25		195 .. 265	AC	4.1
119 x 119 x 38	86.6	36		195 .. 265	AC	4.9
130	141.4		50/60	230	AC
130	162		50/60	230	AC
130	123.7		50/60	115	AC
130	162		50/60	115	AC
200	642	60	-	36 .. 57	DC
200	642	60		16 .. 28	DC
250	1130.9	70		16 .. 28	DC
250	1130.9	70		36 .. 57	DC
142	188.5	51	50	115	AC
142	223.8	56	60	115	AC
142	188.5	51	50	115	AC
142	223.8	56	60	115	AC
142	164.9	48	50	115	AC
142	179.6	50	60	115	AC
143	220.9	55	50	115	AC
143	259.2	60	60	115	AC
143	259.2	60	60	115	AC
143	247.4	54	50	115	AC
143			60	115	AC
143	294.5	58	60	115	AC
143	247.4	54	50	115	AC
143	294.5	58	60	115	AC
200	494.8	56	50	115	AC
200	494.8	56	60	115	AC
200	544.8	59	50	115	AC
200	606.7	61	60	115	AC
200	544.8	59	50	115	AC
200	606.7	61	60	115	AC
200	606.7	61	60	115	AC
200	544.8	59	50	115	AC
200	606.7	61	60	115	AC
200	518.3	58	50	230	AC
200	589	61	60	230	AC
200	544.8	59	50	115	AC
200	606.7	61	60	115	AC
250	1113.2	69	50	115	AC
250	1207.5	71	60	115	AC
250	1098.5	69	50	230	AC
250	1160.3	70	60	230	AC
250	1095.5	67	50	115	AC
250	1166.2	70	60	115	AC
250	1166.2	70	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	223.8	53	60	115	AC
130	191.4	49	50	115	AC
130	223.8	53	60	115	AC
130	194.4	53	50	115	AC
130	223.8	57	60	115	AC
130	223.8	60	50	115	AC
130	250.3	62	60	115	AC
200	265.1	40	50	230	AC
200	309.2	44	60	230	AC

Legend

Dimensions = Dimensions / Size
q_V = Air flow
L_pA = Sound pressure level

f = Frequency
U_N = Nominal voltage (range)
AC/DC = Type of voltage

L_wA = Sound power level


in mm	in m³/h	in V	in Hz		in Bel
100 Ø x 25	86	8 .. 15		DC	6.3
100 Ø x 25	86	16 .. 30		DC	6.3
100 Ø x 25	86	36 .. 60		DC	6.3
100 Ø x 25	104	36 .. 56		DC	6.9
175 Ø x 55	800	36 .. 72		DC	8.3
101 Ø x 52	190	9 .. 13.6		DC	7.2
101 Ø x 52	190	18 .. 27,2		DC	7.2
101 Ø x 52	190	36 .. 60		DC	7.2
120 Ø x 54	320	16 .. 32		DC
120 Ø x 54	377	16 .. 32		DC	8.2
120 Ø x 54	320	36 .. 60		DC
120 Ø x 54	390	36 .. 60		DC	8.3
138 Ø x 40	115	115	60	AC	6.5
138 Ø x 35	110	7 .. 15		DC	5.7
138 Ø x 35	110	12 .. 28		DC	5.7
138 Ø x 35	166	12 .. 28		DC	7
138 Ø x 35	110	36 .. 56		DC	5.7
138 Ø x 40	104	230	50	AC	6.2
133 Ø x 91	460	16 .. 30		DC
133 Ø x 91	565	16 .. 36		DC
133 Ø x 91	460	36 .. 57		DC
133 Ø x 91	565	36 .. 72		DC	8.2
176 Ø x 54	274	115	60	AC	6.8
165 Ø x 51	225	7 .. 14		DC	6.4
165 Ø x 51	255	12 .. 28		DC	6.4
165 Ø x 51	370	16 .. 28		DC	7.4
165 Ø x 51	255	28 .. 60		DC	6.4
165 Ø x 51	354	38 .. 57		DC	7.4
165 Ø x 51	305	36 .. 60		DC	8.5
176 Ø x 54	234	230	50	AC	6.6
175 Ø x 69	600	16 .. 30		DC	7.3
175 Ø x 69	865	16 .. 36		DC	8.2
175 Ø x 69	600	36 .. 57		DC	7.3
175 Ø x 69	865	36 .. 72		DC	8.2
175 Ø x 69	980	36 .. 72		DC	8.5
190 Ø x 69	650	16 .. 30		DC	7.6
190 Ø x 69	860	16 .. 36		DC	7.9
190 Ø x 69	650	36 .. 57		DC	7.6
190 Ø x 69	860	36 .. 72		DC	7.9
190 Ø x 69	970	36 .. 72		DC	8.3
220 Ø 71	1063	16 .. 36		DC
220 Ø 71	1063	36 .. 72		DC
220 Ø 71	1250	36 .. 72		DC
225 Ø x 99	1190	36 .. 72		DC	7.2
225 Ø x 99	1340	36 .. 72		DC	7.8
225 Ø x 99	1600	36 .. 72		DC	8.1
97 Ø x 41	220	16 .. 32		DC	8.1
97 Ø x 41	220	36 .. 60		DC	8.1
180 x 180 x 40	94	115	60	AC	6
180 x 180 x 40	87.5	7 .. 15		DC	5.8
180 x 180 x 40	60	7 .. 15		DC	4.8
180 x 180 x 40	87.5	12 .. 28		DC	5.8
180 x 180 x 40	60	12 .. 28		DC	4.8
180 x 180 x 40	87.5	36 .. 56		DC	5.8
180 x 180 x 40	137	36 .. 56		DC	7
180 x 180 x 40	86	230	50	AC	5.8
180 x 180 x 40	118			DC	6
220 x 220 x 56	223	115	60	AC	6.9
220 x 220 x 56	209	7.5 .. 14		DC	6.6
220 x 220 x 56	209	12 .. 28		DC	6.6
220 x 220 x 56	139	12 .. 28		DC	5.6
220 x 220 x 56	308	16 .. 28		DC	7.5
220 x 220 x 56	308	16 .. 28		DC	7.5
220 x 220 x 56	370	16 .. 28		DC	7.8
220 x 220 x 56	308	16 .. 28		DC	7.5
220 x 220 x 56	209	28 .. 60		DC	6.6
220 x 220 x 56	308	38 .. 57		DC	7.5
220 x 220 x 56	308	38 .. 57		DC	7.5
220 x 220 x 56	444	36 .. 60		DC	8.5
220 x 220 x 56	202	230	50	AC	6.6
225 x 225 x 85	630	16 .. 30		DC	7.6
225 x 225 x 85	820	16 .. 36		DC	7.9
225 x 225 x 85	630	36 .. 57		DC	7.6
225 x 225 x 85	820	36 .. 72		DC	7.9
225 x 225 x 85	930	36 .. 72		DC	8.3
270 x 270 x 99	1100	16 .. 36		DC	7.5
270 x 270 x 119	1090	16 .. 36		DC	7.4
270 x 270 x 119	1450	36 .. 60		DC	8.1
270 x 270 x 119	1090	36 .. 72		DC	7.4
270 x 270 x 119	1210	36 .. 72		DC	7.9
135 x 135 x 38	47	115	60	AC	6.2
135 x 135 x 38	47	115	60	AC	6.2
135 x 135 x 38	55	7 .. 15		DC	5.5
135 x 135 x 38	55	12 .. 28		DC	5.5
135 x 135 x 38	55	12 .. 28		DC	5.5
135 x 135 x 38	55	36 .. 56		DC	5.5
135 x 135 x 38	54	230	50	AC	5.8
135 x 135 x 38	54	230	50	AC	5.8
76 x 76 x 27	28	8 .. 13.5		DC	5.7
76 x 76 x 27	22	8 .. 15		DC	5.3
76 x 76 x 27	28	18 .. 26.4		DC	5.7
76 x 76 x 27	22	18 .. 28		DC	5.3
97 x 93.5 x 33	56	6.8 .. 13.8		DC	6.6
97 x 93.5 x 33	61	6.8 .. 13.2		DC	6.8
97 x 93.5 x 33	56	12 .. 26.4		DC	6.6
97 x 93.5 x 33	61	12 .. 26.4		DC	6.8
121 x 121 x 37	42	115	60	AC	6
121 x 121 x 37	42	115	60	AC	6
121 x 121 x 37	40	7 .. 15		DC	5.8
121 x 121 x 37	40	12 .. 28		DC	5.8
121 x 121 x 37	40	12 .. 28		DC	5.8
121 x 121 x 37	55	36 .. 53		DC	6.9
121 x 121 x 37	40	230	50	AC	5.6
121 x 121 x 37	40	230	50	AC	5.6
127 x 127 x 25	64	8 .. 15		DC	6.4
127 x 127 x 25	80	10 .. 13.2		DC	7.5
127 x 127 x 25	64	16 .. 30		DC	6.4
127 x 127 x 25	64	36 .. 60		DC	6.4
127 x 127 x 25	80	43 .. 53		DC	7.5
51 x 51 x 15	9.6	8 .. 13,2		DC	5.5
51 x 51 x 15	9.6	14 .. 28		DC	5.5
105 x 59 x 79	24	9 .. 16		DC	5
105 x 59 x 79	18	9 .. 16		DC	4

Legend

Dimensions = Dimensions / Size
q_V = Air flow
U_N = Nominal voltage (range)

f = Frequency
AC/DC = Type of voltage
L_wA = Sound power level


in mm	in m³/h	in dB(A)	in V		in Bel
119 x 119 x 38	280	61	9 .. 15	DC	6.9
119 x 119 x 38	280	61	16 .. 30	DC	6.9
119 x 119 x 38	280	61	36 .. 60	DC	6.9
127 x 127 x 38	270	56	9 .. 15	DC	6.4
127 x 127 x 38	320	62	16 .. 30	DC	7.2
127 x 127 x 38	270	56	16 .. 30	DC	6.4
127 x 127 x 38	270	56	36 .. 60	DC	6.4
172 Ø x 51	540	63	16 .. 28	DC	7.1
172 Ø x 51	700	69	16 .. 36	DC	7.8
172 Ø x 51	700	69	16 .. 36	DC	7.8
172 Ø x 51	540	63	28 .. 60	DC	7.1
172 Ø x 51	700	69	40 .. 55	DC	7.8
172 Ø x 51	700	69	40 .. 55	DC	7.8
172 Ø x 51	700	69	40 .. 55	DC	7.8
172 Ø x 51	700	69	40 .. 55	DC	7.8
172 Ø x 51	770	73	36 .. 72	DC	8
172 x 51	1050	77	36 .. 72	DC	8.7
172 x 51	1100	79	36 .. 72	DC	8.9
172 x 160 x 51	530	65	16 .. 28	DC	7.3
172 x 160 x 51	680	71	16 .. 28	DC	7.9
172 x 160 x 51	680	71	16 .. 28	DC	7.9
172 x 160 x 51	530	65	28 .. 60	DC	7.3
172 x 160 x 51	680	71	40 .. 55	DC	7.9
172 x 160 x 51	680	71	40 .. 55	DC	7.9
200	1040		16 .. 28	DC
200	1243		36 .. 57	DC
200	1095		36 .. 57	DC
200	1018		16 .. 28	DC
200	1216		16 .. 28	DC
200	800		36 .. 57	DC
200	1528		36 .. 57	DC

Legend

Dimensions = Dimensions / Size
q_V = Air flow
L_pA = Sound pressure level

U_N = Nominal voltage (range)
AC/DC = Type of voltage
L_wA = Sound power level

LIÊN HỆ

- là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay

Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.

< SALE & TECHNICAL SUPPORT >

< PROJECT SUPPORT >
Email :

-------------------------------------------------------------------
