| Technical description | |
|---|---|
| Weight | 0.005 kg |
| Dimensions | 25 x 25 x 8 mm |
| Impeller material | Glass-fiber reinforced PA plastic |
| Housing material | Glass-fiber reinforced PBT plastic |
| Airflow direction | Exhaust over struts |
| Direction of rotation | Counterclockwise, viewed toward rotor |
| Storage | Sintec sleeve bearing system |
| Service life L10 at 20 °C | 35000 h |
| Service life L10 at 60 °C | 15000 h |
| Cable | Leads AWG 28, TR 64, stripped and tin-plated. |
| Motor protection | Protection against reverse polarity and blocked rotor. |
| Approval | VDE, CSA, UL |
| Option | Possible custom designs; Speed signal Moisture protection |

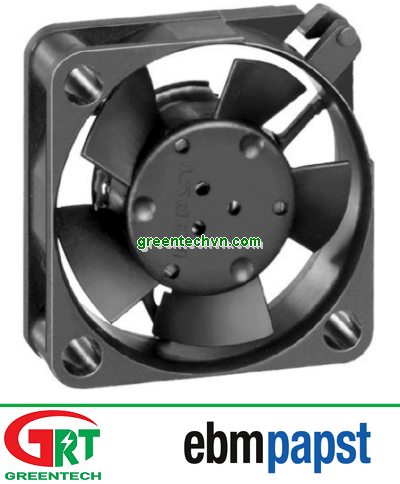

255 M | EBMPapst 255 M | Quạt hướng trục loại nhỏ | DC axial compact fan | EBMPapst Vietnam Gợi ý:
Mã SP: 255 M | EBMPapst 25
Giá bán : Vui lòng gọi
Số lượng:
255 M | EBMPapst 255 M | Quạt hướng trục loại nhỏ | DC axial compact fan | EBMPapst Vietnam
Gợi ý:
Thông tin người bán
Công ty TNHH Thương mại dịch vụ GREENTECH
33 Đường DC5, Phường Sơn Kỳ, Quận Tân Phú, Tp.HCM
Hotline: 0935 04 1313
Email: sales@greentechvn.com
CHI TIẾT
THÔNG SỐ KỸ THUẬT
| Type | |||||||
|---|---|---|---|---|---|---|---|
| in mm | cfm | in dB(A) | in Hz | in V | in Bel | ||
| 220 x 200 x 51 | 553.7 | 66 | 16 .. 36 | DC | 7.4 | ||
| 220 x 200 x 51 | 465.3 | 62 | 16 .. 30 | DC | 7.1 | ||
| 220 x 200 x 51 | 718.6 | 72 | 36 .. 72 | DC | 8.2 | ||
| 220 x 200 x 51 | 553.7 | 66 | 36 .. 72 | DC | 7.4 | ||
| 220 x 200 x 51 | 465.3 | 62 | 36 .. 57 | DC | 7.1 | ||
| 25 x 25 x 8 | 2.7 | 23 | 10 .. 14 | DC | 4.4 | ||
| 25 x 25 x 8 | 2 | 15 | 10 .. 14 | DC | |||
| 25 x 25 x 8 | 2.7 | 23 | 4.5 .. 5.5 | DC | 4.4 | ||
| 25 x 25 x 8 | 1.4 | 5 | 4.5 .. 5.5 | DC | |||
| 25 x 25 x 8 | 2.1 | 16 | 4.5 .. 5.5 | DC | |||
| 92 x 92 x 38 | 86 | 55 | 7 .. 15 | DC | 6.4 | ||
| 92 x 92 x 38 | 139.6 | 69 | 6 .. 13.8 | DC | 7.8 | ||
| 92 x 92 x 38 | 164.9 | 73 | 6 .. 13.8 | DC | 8.2 | ||
| 92 x 92 x 38 | 76.6 | 51 | 7 .. 13.8 | DC | 6.1 | ||
| 92 x 92 x 38 | 86 | 55 | 12 .. 30 | DC | 6.4 | ||
| 92 x 92 x 38 | 139.6 | 69 | 12 .. 27.6 | DC | 7.8 | ||
| 92 x 92 x 38 | 164.9 | 73 | 12 .. 27.6 | DC | 8.2 | ||
| 92 x 92 x 38 | 76.6 | 51 | 11 .. 28 | DC | 6.1 | ||
| 92 x 92 x 38 | 86 | 55 | 36 .. 53 | DC | 6.4 | ||
| 92 x 92 x 38 | 139.6 | 69 | 20 .. 58 | DC | 7.8 | ||
| 92 x 92 x 38 | 164.9 | 73 | 20 .. 58 | DC | 8.2 | ||
| 92 x 92 x 38 | 76.6 | 51 | 36 .. 56 | DC | 6.1 | ||
| 92 x 92 x 38 | 159 | 64 | 7 .. 13,2 | DC | 7.6 | ||
| 92 x 92 x 38 | 159 | 64 | 14 .. 26,4 | DC | 7.6 | ||
| 92 x 92 x 38 | 159 | 64 | 36 .. 56 | DC | 7.6 | ||
| 92 x 92 x 38 | 138.4 | 59 | 36 .. 56 | DC | 7 | ||
| 92 x 92 x 32 | 54.8 | 38 | 6 .. 15 | DC | 5.1 | ||
| 92 x 92 x 32 | 78.3 | 48 | 6 .. 15 | DC | 5.9 | ||
| 92 x 92 x 32 | 63 | 42 | 6 .. 15 | DC | 5.4 | ||
| 92 x 92 x 32 | 33 | 24 | 6 .. 15 | DC | 4.1 | ||
| 92 x 92 x 32 | 40.1 | 29 | 6 .. 15 | DC | 4.5 | ||
| 92 x 92 x 32 | 47.1 | 35 | 6 .. 15 | DC | 4.7 | ||
| 92 x 92 x 32 | 54.8 | 38 | 12 .. 28 | DC | 5.1 | ||
| 92 x 92 x 32 | 78.3 | 50 | 12 .. 28 | DC | 6 | ||
| 92 x 92 x 32 | 63 | 42 | 12 .. 28 | DC | 5.4 | ||
| 92 x 92 x 32 | 47.1 | 35 | 12 .. 28 | DC | 4.7 | ||
| 92 x 92 x 32 | 47.1 | 37 | 36 .. 60 | DC | 5.2 | ||
| 92 x 92 x 32 | 54.8 | 38 | 36 .. 60 | DC | 5.1 | ||
| 92 x 92 x 32 | 78.3 | 50 | 36 .. 58 | DC | 6 | ||
| 92 x 92 x 32 | 47.1 | 35 | 36 .. 60 | DC | 4.7 | ||
| 92 x 92 x 25 | 49.5 | 32 | 8 .. 15 | DC | 4.7 | ||
| 92 x 92 x 25 | 49.5 | 32 | 8 .. 15 | DC | 4.7 | ||
| 92 x 92 x 25 | 55.4 | 36 | 8 .. 15 | DC | 5 | ||
| 92 x 92 x 25 | 60.1 | 39 | 8 .. 13.2 | DC | 5.1 | ||
| 92 x 92 x 25 | 35.9 | 23 | 8 .. 15 | DC | 4 | ||
| 92 x 92 x 25 | 42.4 | 28 | 8 .. 15 | DC | 4.3 | ||
| 92 x 92 x 25 | 42.4 | 28 | 8 .. 14 | DC | 4.3 | ||
| 92 x 92 x 25 | 49.5 | 32 | 8 .. 12.6 | DC | 4.7 | ||
| 92 x 92 x 25 | 55.4 | 36 | 8 .. 15 | DC | 5 | ||
| 92 x 92 x 25 | 60.1 | 39 | 8 .. 13.2 | DC | 5.1 | ||
| 92 x 92 x 25 | 60.1 | 39 | 8 .. 15 | DC | 5.1 | ||
| 92 x 92 x 25 | 35.9 | 23 | 8 .. 15 | DC | 4 | ||
| 92 x 92 x 25 | 42.4 | 28 | 8 .. 15 | DC | 4.3 | ||
| 92 x 92 x 25 | 49.5 | 32 | 18 .. 28 | DC | 4.7 | ||
| 92 x 92 x 25 | 55.4 | 36 | 18 .. 26 | DC | 5 | ||
| 92 x 92 x 25 | 60.1 | 39 | 18 .. 26 | DC | 5.1 | ||
| 92 x 92 x 25 | 60.1 | 39 | 18 .. 28 | DC | 5.1 | ||
| 92 x 92 x 25 | 35.9 | 23 | 18 .. 28 | DC | 4 | ||
| 92 x 92 x 25 | 42.4 | 28 | 18 .. 28 | DC | 4.3 | ||
| 92 x 92 x 25 | 55.4 | 36 | 18 .. 26 | DC | 5 | ||
| 92 x 92 x 25 | 60.1 | 39 | 18 .. 26 | DC | 5.1 | ||
| 92 x 92 x 25 | 60.1 | 39 | 18 .. 28 | DC | 5.1 | ||
| 92 x 92 x 25 | 35.9 | 23 | 18 .. 28 | DC | 4 | ||
| 92 x 92 x 25 | 42.4 | 28 | 18 .. 28 | DC | 4.3 | ||
| 92 x 92 x 25 | 49.5 | 32 | 36 .. 56 | DC | 4.7 | ||
| 40 x 40 x 20 | 5.9 | 18 | 4.5 .. 5.5 | DC | 3.8 | ||
| 40 x 40 x 20 | 5.9 | 18 | 10 .. 14 | DC | 3.8 | ||
| 40 x 40 x 20 | 5.9 | 18 | 20 .. 28 | DC | 3.8 | ||
| 92 x 92 x 38 | 43 | 35 | 60 | 115 | AC | 4.6 | |
| 92 x 92 x 38 | 43 | 36 | 60 | 115 | AC | 4.7 | |
| 92 x 92 x 38 | 39.5 | 32 | 50 | 230 | AC | 4.4 | |
| 92 x 92 x 38 | 39.5 | 33 | 50 | 230 | AC | 4.5 | |
| 92 x 92 x 38 | 52.4 | 41 | 60 | 115 | AC | 5.1 | |
| 92 x 92 x 38 | 52.4 | 42 | 60 | 115 | AC | 5.2 | |
| 92 x 92 x 38 | 44.2 | 36 | 50 | 230 | AC | 4.8 | |
| 92 x 92 x 38 | 44.2 | 37 | 50 | 230 | AC | 4.9 | |
| 92 x 92 x 38 | 31.8 | 26 | 60 | 115 | AC | 3.9 | |
| 92 x 92 x 38 | 35.3 | 29 | 60 | 115 | AC | 4.2 | |
| 92 x 92 x 38 | 28.9 | 24 | 50 | 230 | AC | 3.7 | |
| 92 x 92 x 38 | 31.8 | 26 | 50 | 230 | AC | 3.9 | |
| 92 x 92 x 25 | 41.2 | 40 | 60 | 115 | AC | 5.1 | |
| 92 x 92 x 25 | 23 | 27 | 60 | 115 | AC | 4 | |
| 92 x 92 x 25 | 31.2 | 34 | 60 | 115 | AC | 4.6 | |
| 92 x 92 x 25 | 41.2 | 40 | 60 | 115 | AC | 5.1 | |
| 92 x 92 x 25 | 23 | 27 | 60 | 115 | AC | 4 | |
| 92 x 92 x 25 | 31.2 | 34 | 60 | 115 | AC | 4.6 | |
| 92 x 92 x 25 | 34.8 | 35 | 50 | 230 | AC | 4.7 | |
| 92 x 92 x 25 | 18.3 | 24 | 50 | 230 | AC | 3.8 | |
| 92 x 92 x 25 | 26.5 | 29 | 50 | 230 | AC | 4.2 | |
| 92 x 92 x 25 | 34.8 | 35 | 50 | 230 | AC | 4.7 | |
| 92 x 92 x 25 | 18.3 | 24 | 50 | 230 | AC | 3.8 | |
| 92 x 92 x 25 | 26.5 | 29 | 50 | 230 | AC | 4.2 | |
| 40 x 40 x 10 | 4.7 | 22.1 | 4.5 .. 5.5 | DC | 4.4 | ||
| 40 x 40 x 10 | 5.3 | 26 | 4.5 .. 5.5 | DC | 4.6 | ||
| 119 x 119 x 38 | 182.6 | 65 | 9 .. 15 | DC | 7.2 | ||
| 119 x 119 x 38 | 209.1 | 67 | 9 .. 14 | DC | 7.4 | ||
| 119 x 119 x 38 | 153.1 | 60 | 9 .. 15 | DC | 6.8 | ||
| 119 x 119 x 38 | 294.5 | 76 | 16 .. 30 | DC | 8.5 | ||
| 119 x 119 x 38 | 335.7 | 78 | 16 .. 30 | DC | 8.9 | ||
| 119 x 119 x 38 | 182.6 | 65 | 16 .. 30 | DC | 7.2 | ||
| 119 x 119 x 38 | 209.1 | 67 | 16 .. 30 | DC | 7.4 | ||
| 119 x 119 x 38 | 229.7 | 70 | 16 .. 30 | DC | 7.6 | ||
| 119 x 119 x 38 | 259.2 | 73 | 16 .. 30 | DC | 8.1 | ||
| 119 x 119 x 38 | 153.1 | 60 | 16 .. 30 | DC | 6.8 | ||
| 119 x 119 x 38 | 294.5 | 76 | 36 .. 60 | DC | 8.5 | ||
| 119 x 119 x 38 | 335.7 | 78 | 36 .. 60 | DC | 8.9 | ||
| 119 x 119 x 38 | 182.6 | 65 | 36 .. 60 | DC | 7.2 | ||
| 119 x 119 x 38 | 209.1 | 67 | 36 .. 60 | DC | 7.4 | ||
| 119 x 119 x 38 | 229.7 | 70 | 36 .. 60 | DC | 7.6 | ||
| 119 x 119 x 38 | 259.2 | 73 | 36 .. 60 | DC | 8.1 | ||
| 119 x 119 x 38 | 153.1 | 60 | 36 .. 60 | DC | 6.8 | ||
| 40 x 40 x 10 | 4.7 | 22.1 | 10 .. 14 | DC | 4.4 | ||
| 40 x 40 x 10 | 4.7 | 22.1 | 10 .. 14 | DC | 4.4 | ||
| 40 x 40 x 10 | 5.3 | 26 | 10 .. 14 | DC | 4.6 | ||
| 40 x 40 x 10 | 5.3 | 26 | 10 .. 14 | DC | 4.6 | ||
| 40 x 40 x 10 | 3.5 | 17 | 10 .. 14 | DC | 3.8 | ||
| 40 x 40 x 10 | 3.5 | 17 | 10 .. 14 | DC | 3.8 | ||
| 40 x 40 x 20 | 8 | 29 | 10 .. 14 | DC | 4.7 | ||
| 40 x 40 x 25 | 11.2 | 39 | 8 .. 14 | DC | 5.5 | ||
| 40 x 40 x 25 | 13 | 43 | 8 .. 13.5 | DC | 5.8 | ||
| 40 x 40 x 25 | 14.1 | 46 | 8 .. 13.5 | DC | 6.1 | ||
| 40 x 40 x 20 | 5.9 | 18 | 10 .. 14 | DC | 3.8 | ||
| 40 x 40 x 10 | 4.7 | 22.1 | 20 .. 28 | DC | 4.4 | ||
| 40 x 40 x 10 | 5.3 | 26 | 21.6 .. 26.4 | DC | 4.4 | ||
| 40 x 40 x 20 | 8 | 29 | 20 .. 26.5 | DC | 4.7 | ||
| 40 x 40 x 25 | 11.2 | 39 | 18 .. 27 | DC | 5.5 | ||
| 40 x 40 x 25 | 13 | 43 | 18 .. 27 | DC | 5.8 | ||
| 40 x 40 x 25 | 14.1 | 46 | 18 .. 27 | DC | 6.1 | ||
| 119 x 119 x 38 | 94.2 | 44 | 6 .. 15 | DC | 5.3 | ||
| 119 x 119 x 38 | 106 | 49 | 6 .. 15 | DC | 5.7 | ||
| 119 x 119 x 38 | 139.6 | 57 | 7 .. 14 | DC | 6.5 | ||
| 119 x 119 x 38 | 94.2 | 44 | 12 .. 31,5 | DC | 5.3 | ||
| 119 x 119 x 38 | 106 | 49 | 12 .. 31,5 | DC | 5.7 | ||
| 119 x 119 x 38 | 139.6 | 57 | 12 .. 28 | DC | 6.5 | ||
| 119 x 119 x 38 | 94.2 | 44 | 12 .. 31,5 | DC | 5.3 | ||
| 119 x 119 x 38 | 94.2 | 44 | 36 .. 60 | DC | 5.3 | ||
| 119 x 119 x 38 | 94.2 | 44 | 36 .. 60 | DC | 5.3 | ||
| 40 x 40 x 28 | 22.4 | 54 | 8 .. 13,8 | DC | 6.6 | ||
| 40 x 40 x 28 | 14.1 | 42 | 8 .. 13,8 | DC | 5.5 | ||
| 40 x 40 x 28 | 18.3 | 48 | 8 .. 13,8 | DC | 6 | ||
| 40 x 40 x 28 | 22.4 | 54 | 16 .. 26,4 | DC | 6.6 | ||
| 40 x 40 x 28 | 14.1 | 42 | 16 .. 28 | DC | 5.5 | ||
| 40 x 40 x 28 | 18.3 | 48 | 16 .. 28 | DC | 6 | ||
| 119 x 119 x 32 | 100.1 | 45 | 6 .. 15 | DC | 5.8 | ||
| 119 x 119 x 32 | 56 | 30 | 6 .. 15 | DC | 4.3 | ||
| 119 x 119 x 32 | 82.5 | 39 | 6 .. 15 | DC | 5.3 | ||
| 119 x 119 x 32 | 56 | 30 | 6 .. 15 | DC | 4.3 | ||
| 119 x 119 x 32 | 82.5 | 39 | 6 .. 15 | DC | 5.3 | ||
| 119 x 119 x 32 | 81.3 | 39 | 8 .. 15 | DC | 5.3 | ||
| 119 x 119 x 32 | 82.5 | 39 | 8 .. 15 | DC | 5.3 | ||
| 119 x 119 x 32 | 100.1 | 45 | 8 .. 13.2 | DC | 5.8 | ||
| 119 x 119 x 32 | 106 | 47 | 6 .. 15 | DC | 6.1 | ||
| 119 x 119 x 32 | 120.2 | 51 | 6 .. 13.2 | DC | 6.4 | ||
| 119 x 119 x 32 | 100.1 | 45 | 12 .. 28 | DC | 5.8 | ||
| 119 x 119 x 32 | 100.1 | 45 | 12 .. 28 | DC | 5.8 | ||
| 119 x 119 x 32 | 56 | 30 | 12 .. 28 | DC | 4.3 | ||
| 119 x 119 x 32 | 82.5 | 39 | 12 .. 28 | DC | 5.3 | ||
| 119 x 119 x 32 | 100.1 | 45 | 18 .. 32 | DC | 5.8 | ||
| 119 x 119 x 32 | 100.1 | 45 | 21 .. 27 | DC | 5.8 | ||
| 119 x 119 x 32 | 106 | 47 | 12 .. 28 | DC | 6.1 | ||
| 119 x 119 x 32 | 120.2 | 51 | 12 .. 26.5 | DC | 6.4 | ||
| 119 x 119 x 32 | 100.1 | 45 | 36 .. 53 | DC | 5.8 | ||
| 119 x 119 x 32 | 82.5 | 39 | 36 .. 56 | DC | 5.3 | ||
| 119 x 119 x 32 | 100.1 | 45 | 40 .. 53 | DC | 5.8 | ||
| 119 x 119 x 38 | 167.9 | 55 | 7 .. 14.5 | DC | 6.4 | ||
| 119 x 119 x 25 | 100.1 | 43 | 8 .. 12.6 | DC | 5.3 | ||
| 119 x 119 x 25 | 100.1 | 43 | 8 .. 12.6 | DC | 5.3 | ||
| 119 x 119 x 25 | 55.4 | 26 | 7 .. 14 | DC | 3.9 | ||
| 127 x 127 | 53.6 | 26 | 7 .. 15 | DC | 3.9 | ||
| 119 x 119 x 25 | 82.5 | 38 | 7 .. 12.6 | DC | 4.8 | ||
| 119 x 119 x 25 | 67.1 | 32 | 7 .. 12.6 | DC | 4.3 | ||
| 119 x 119 x 25 | 82.5 | 38 | 7 .. 12.6 | DC | 4.8 | ||
| 119 x 119 x 25 | 67.1 | 32 | 7 .. 12.6 | DC | 4.3 | ||
| 119 x 119 x 25 | 132.5 | 55 | 9 .. 13.2 | DC | 6.7 | ||
| 119 x 119 x 38 | 141.4 | 50 | 7 .. 14 | DC | 6 | ||
| 119 x 119 x 38 | 88.4 | 37 | 7 .. 14 | DC | 5 | ||
| 119 x 119 x 38 | 108.4 | 42 | 7 .. 14 | DC | 5.3 | ||
| 119 x 119 x 38 | 120.7 | 46 | 7 .. 14 | DC | 5.6 | ||
| 119 x 119 x 38 | 167.9 | 55 | 18 .. 28 | DC | 6.4 | ||
| 119 x 119 x 25 | 100.1 | 43 | 12 .. 28 | DC | 5.3 | ||
| 119 x 119 x 25 | 100.1 | 43 | 12 .. 28 | DC | 5.3 | ||
| 119 x 119 x 25 | 55.4 | 26 | 18 .. 28 | DC | 3.9 | ||
| 119 x 119 x 25 | 82.5 | 38 | 12 .. 28 | DC | 4.8 | ||
| 119 x 119 x 25 | 132.5 | 55 | 18 .. 26.4 | DC | 6.7 | ||
| 119 x 119 x 25 | 117.8 | 52 | 14 .. 28 | DC | 6.5 | ||
| 119 x 119 x 38 | 141.4 | 50 | 18 .. 28 | DC | 6 | ||
| 119 x 119 x 38 | 167.9 | 55 | 16 .. 28 | DC | 6.4 | ||
| 119 x 119 x 38 | 88.4 | 37 | 18 .. 28 | DC | 5 | ||
| 119 x 119 x 38 | 108.4 | 42 | 18 .. 28 | DC | 5.3 | ||
| 119 x 119 x 38 | 120.7 | 46 | 18 .. 28 | DC | 5.6 | ||
| 119 x 119 x 38 | 167.9 | 55 | 36 .. 60 | DC | 6.4 | ||
| 119 x 119 x 25 | 100.1 | 43 | 28 .. 53 | DC | 5.3 | ||
| 119 x 119 x 25 | 100.1 | 43 | 28 .. 53 | DC | 5.3 | ||
| 119 x 119 x 25 | 132.5 | 55 | 36 .. 53 | DC | 6.7 | ||
| 119 x 119 x 38 | 141.4 | 50 | 36 .. 60 | DC | 6 | ||
| 119 x 119 x 38 | 88.4 | 37 | 36 .. 60 | DC | 5 | ||
| 119 x 119 x 38 | 108.4 | 42 | 36 .. 60 | DC | 5.3 | ||
| 119 x 119 x 38 | 120.7 | 46 | 36 .. 60 | DC | 5.6 | ||
| 119 x 119 x 38 | 99.5 | 48 | 60 | 115 | AC | 5.7 | |
| 119 x 119 x 38 | 88.9 | 45 | 60 | 115 | AC | 5.4 | |
| 119 x 119 x 38 | 70.7 | 32 | 60 | 115 | AC | 4.4 | |
| 119 x 119 x 38 | 70.7 | 32 | 60 | 115 | AC | 4.4 | |
| 119 x 119 x 38 | 85.4 | 44 | 50 | 230 | AC | 5.4 | |
| 119 x 119 x 38 | 72.4 | 41 | 50 | 230 | AC | 5.2 | |
| 119 x 119 x 38 | 67.7 | 30 | 50 | 230 | AC | 4.3 | |
| 119 x 119 x 38 | 67.7 | 30 | 50 | 230 | AC | 4.3 | |
| 119 x 119 x 38 | 106 | 50 | 60 | 115 | AC | 5.7 | |
| 108 Ø x 37 | 82.5 | 45 | 60 | 115 | AC | ||
| 119 x 119 x 38 | 106 | 45 | 60 | 115 | AC | 5.6 | |
| 119 x 119 x 38 | 106 | 51 | 60 | 115 | AC | 5.8 | |
| 113 Ø x 37 | 86.6 | 44 | 60 | 115 | AC | ||
| 108 Ø x 37 | 82.5 | 45 | 60 | 115 | AC | ||
| 119 x 119 x 38 | 106 | 45 | 60 | 115 | AC | 5.6 | |
| 119 x 119 x 38 | 94.2 | 46 | 50 | 230 | AC | 5.4 | |
| 113 Ø x 37 | 81.3 | 41 | 50 | 230 | AC | ||
| 108 Ø x 37 | 73.6 | 42 | 50 | 230 | AC | ||
| 119 x 119 x 38 | 94.2 | 40 | 50 | 230 | AC | 5.3 | |
| 119 x 119 x 38 | 94.2 | 47 | 50 | 230 | AC | 5.5 | |
| 113 Ø x 37 | 81.3 | 42 | 50 | 230 | AC | ||
| 108 Ø x 37 | 73.6 | 42 | 50 | 230 | AC | ||
| 119 x 119 x 38 | 94.2 | 40 | 50 | 230 | AC | 5.3 | |
| 119 x 119 x 38 | 57.1 | 32 | 60 | 115 | AC | 4.3 | |
| 119 x 119 x 38 | 61.8 | 28 | 60 | 115 | AC | 4.1 | |
| 119 x 119 x 38 | 61.8 | 28 | 60 | 115 | AC | 4.1 | |
| 119 x 119 x 38 | 50.1 | 26 | 60 | 115 | AC | 4.1 | |
| 119 x 119 x 38 | 58.9 | 32 | 50 | 230 | AC | 4.4 | |
| 119 x 119 x 38 | 58.9 | 26 | 50 | 230 | AC | 4 | |
| 119 x 119 x 38 | 58.9 | 26 | 50 | 230 | AC | 4 | |
| 119 x 119 x 38 | 47.1 | 25 | 50 | 230 | AC | 4 | |
| 135 x 135 x 38 | 153.1 | 48 | 6 .. 15 | DC | 6.1 | ||
| 135 x 135 x 38 | 153.1 | 48 | 12 .. 30 | DC | 6.1 | ||
| 135 x 135 x 38 | 153.1 | 48 | 24 .. 60 | DC | 6.1 | ||
| 135 x 135 x 38 | 71.9 | 28 | 24 .. 60 | DC | 4.1 | ||
| 50 x 50 x 15 | 11.8 | 30 | 10.8 .. 13.2 | DC | 4.5 | ||
| 50 x 50 x 15 | 11.8 | 30 | 10.8 .. 13.2 | DC | 4.5 | ||
| 50 x 50 x 15 | 6.5 | 18 | 11.5 .. 13.2 | DC | 3.7 | ||
| 50 x 50 x 15 | 11.8 | 30 | 21.6 .. 26.4 | DC | 4.5 | ||
| 127 x 127 x 38 | 148.4 | 51 | 7 .. 14 | DC | 6 | ||
| 127 x 127 x 38 | 200.3 | 58 | 9 .. 15 | DC | 6.6 | ||
| 127 x 127 x 38 | 110.1 | 43 | 7 .. 14.5 | DC | 5.3 | ||
| 127 x 127 x 38 | 127.2 | 46 | 7 .. 14 | DC | 5.6 | ||
| 127 x 127 x 38 | 148.4 | 51 | 12 .. 28 | DC | 6 | ||
| 127 x 127 x 38 | 200.3 | 58 | 16 .. 30 | DC | 6.6 | ||
| 127 x 127 x 38 | 110.1 | 43 | 12 .. 28 | DC | 5.3 | ||
| 127 x 127 x 38 | 127.2 | 46 | 12 .. 28 | DC | 5.6 | ||
| 127 x 127 x 38 | 148.4 | 51 | 36 .. 56 | DC | 6 | ||
| 127 x 127 x 38 | 200.3 | 58 | 36 .. 60 | DC | 6.6 | ||
| 127 x 127 x 38 | 110.1 | 43 | 36 .. 56 | DC | 5.3 | ||
| 127 x 127 x 38 | 127.2 | 46 | 36 .. 56 | DC | 5.6 | ||
| 140 x 140 x 51 | 241.5 | 70 | 8 .. 16 | DC | 7.7 | ||
| 140 x 140 x 51 | 241.5 | 70 | 16 .. 36 | DC | 7.7 | ||
| 140 x 140 x 51 | 200.3 | 64 | 16 .. 28 | DC | 7.2 | ||
| 140 x 140 x 51 | 288.6 | 75 | 16 .. 36 | DC | 8.1 | ||
| 140 x 140 x 51 | 394.6 | 79 | 36 .. 72 | DC | 8.8 | ||
| 140 x 140 x 51 | 288.6 | 75 | 36 .. 72 | DC | 8.1 | ||
| 140 x 140 x 51 | 241.5 | 70 | 36 .. 72 | DC | 7.7 | ||
| 140 x 140 x 51 | 200.3 | 64 | 36 .. 72 | DC | 7.2 | ||
| 135 x 135 x 38 | 159 | 50 | 60 | 115 | AC | 6.2 | |
| 135 x 135 x 38 | 138.4 | 46 | 50 | 230 | AC | 5.9 | |
| 127 x 127 x 38 | 121.3 | 46 | 60 | 115 | AC | 5.7 | |
| 127 x 127 x 38 | 121.3 | 47 | 60 | 115 | AC | 5.8 | |
| 127 x 127 x 38 | 95.4 | 40 | 60 | 115 | AC | 4.9 | |
| 127 x 127 x 38 | 106 | 43 | 50 | 230 | AC | 5.4 | |
| 127 x 127 x 38 | 106 | 44 | 50 | 230 | AC | 5.5 | |
| 127 x 127 x 38 | 88.4 | 37 | 50 | 230 | AC | 4.9 | |
| 172 Ø x 51 | 259.2 | 60 | 60 | 115 | AC | 6.4 | |
| 172 Ø x 51 | 294.5 | 58 | 60 | 115 | AC | 6.7 | |
| 60 x 60 x 15 | 17.1 | 27 | 4.5 .. 5.2 | DC | 4.4 | ||
| 172 Ø x 51 | 220.9 | 55 | 50 | 230 | AC | 5.9 | |
| 172 Ø x 51 | 247.4 | 54 | 50 | 230 | AC | 6.3 | |
| 60 x 60 x 15 | 17.1 | 27 | 10.8 .. 13.2 | DC | 4.4 | ||
| 60 x 60 x 15 | 17.1 | 27 | 10.8 .. 12.6 | DC | 4.4 | ||
| 60 x 60 x 15 | 19.4 | 31 | 10 .. 13.2 | DC | 4.8 | ||
| 60 x 60 x 15 | 11.2 | 16 | 11.5 .. 13.2 | DC | 3.6 | ||
| 60 x 60 x 15 | 11.2 | 16 | 11.5 .. 14 | DC | 3.6 | ||
| 60 x 60 x 32 | 41.2 | 53 | 7 .. 13.6 | DC | 6.4 | ||
| 60 x 60 x 25 | 12.4 | 16 | 8 .. 15 | DC | 3.6 | ||
| 60 x 60 x 25 | 20.6 | 28 | 8 .. 15 | DC | 4.6 | ||
| 60 x 60 x 25 | 20.6 | 28 | 8 .. 12.6 | DC | 4.6 | ||
| 60 x 60 x 25 | 14.7 | 19 | 8 .. 15 | DC | 3.9 | ||
| 60 x 60 x 25 | 24.1 | 35 | 8 .. 12.6 | DC | 5 | ||
| 60 x 60 x 25 | 24.1 | 35 | 8 .. 12.6 | DC | 5 | ||
| 60 x 60 x 25 | 25.3 | 37 | 8 .. 15 | DC | 5.3 | ||
| 60 x 60 x 25 | 33 | 41 | 8 .. 15 | DC | 5.7 | ||
| 60 x 60 x 25 | 12.4 | 16 | 8 .. 15 | DC | 3.6 | ||
| 60 x 60 x 25 | 20.6 | 28 | 8 .. 15 | DC | 4.6 | ||
| 60 x 60 x 25 | 20.6 | 28 | 8 .. 12.6 | DC | 4.6 | ||
| 60 x 60 x 25 | 14.7 | 19 | 8 .. 15 | DC | 3.9 | ||
| 60 x 60 x 25 | 24.7 | 35 | 8 .. 15 | DC | 5 | ||
| 60 x 60 x 25 | 24.1 | 35 | 8 .. 12.6 | DC | 5 | ||
| 60 x 60 x 15 | 17.1 | 27 | 21.6 .. 26.4 | DC | 4.4 | ||
| 60 x 60 x 32 | 48.3 | 62 | 18 .. 30 | DC | 7.6 | ||
| 60 x 60 x 32 | 41.2 | 53 | 14 .. 26.4 | DC | 6.4 | ||
| 60 x 60 x 25 | 12.4 | 16 | 18 .. 28 | DC | 3.6 | ||
| 60 x 60 x 25 | 20.6 | 28 | 18 .. 28 | DC | 4.6 | ||
| 60 x 60 x 25 | 14.7 | 19 | 18 .. 28 | DC | 3.9 | ||
| 60 x 60 x 25 | 25.3 | 37 | 18 .. 26 | DC | 5.3 | ||
| 60 x 60 x 25 | 33 | 41 | 18 .. 26 | DC | 5.7 | ||
| 60 x 60 x 25 | 33 | 41 | 18 .. 28 | DC | 5.7 | ||
| 60 x 60 x 25 | 12.4 | 16 | 18 .. 28 | DC | 3.6 | ||
| 60 x 60 x 25 | 20.6 | 28 | 18 .. 28 | DC | 4.6 | ||
| 60 x 60 x 25 | 14.7 | 19 | 18 .. 28 | DC | 3.9 | ||
| 60 x 60 x 25 | 24.7 | 35 | 18 .. 28 | DC | 5 | ||
| 60 x 60 x 32 | 48.3 | 62 | 38 .. 58 | DC | 7.6 | ||
| 60 x 60 x 32 | 41.2 | 53 | 36 .. 56 | DC | 6.4 | ||
| 60 x 60 x 25 | 20.6 | 28 | 36 .. 56 | DC | 4.6 | ||
| 60 x 60 x 25 | 24.7 | 35 | 36 .. 56 | DC | 5 | ||
| 60 x 60 x 25 | 39.5 | 48 | 8 .. 13.2 | DC | 5.9 | ||
| 60 x 60 x 25 | 27.1 | 39 | 8 .. 15 | DC | 5.1 | ||
| 60 x 60 x 25 | 33 | 43 | 8 .. 15 | DC | 5.6 | ||
| 60 x 60 x 25 | 17.7 | 29 | 8 .. 15 | DC | 4.3 | ||
| 60 x 60 x 25 | 17.7 | 29 | 8 .. 15 | DC | 4.3 | ||
| 60 x 60 x 25 | 23.6 | 35 | 8 .. 15 | DC | 4.7 | ||
| 60 x 60 x 25 | 27.1 | 39 | 18 .. 28 | DC | 5.1 | ||
| 60 x 60 x 25 | 33 | 43 | 18 .. 28 | DC | 5.6 | ||
| 60 x 60 x 25 | 12.4 | 20 | 18 .. 28 | DC | 3.7 | ||
| 60 x 60 x 25 | 17.7 | 29 | 12 .. 28 | DC | 4.3 | ||
| 60 x 60 x 25 | 23.6 | 35 | 12 .. 28 | DC | 4.7 | ||
| 60 x 60 x 25 | 33 | 43 | 36 .. 60 | DC | 5.6 | ||
| 172 Ø x 51 | 353.4 | 60 | 8 .. 16 | DC | 7.3 | ||
| 172 Ø x 51 | 359.3 | 8 .. 16 | DC | ||||
| 172 Ø x 51 | 353.4 | 60 | 16 .. 36 | DC | 7.3 | ||
| 172 Ø x 51 | 418.2 | 69 | 16 .. 36 | DC | 7.9 | ||
| 172 Ø x 51 | 321 | 58 | 16 .. 30 | DC | 6.9 | ||
| 172 Ø x 51 | 232.7 | 51 | 16 .. 30 | DC | 6 | ||
| 172 Ø x 51 | 276.8 | 56 | 16 .. 30 | DC | 6.5 | ||
| 172 x 160 x 51 | 418.2 | 69 | 16 .. 36 | DC | 7.9 | ||
| 172 Ø x 51 | 353.4 | 60 | 16 .. 30 | DC | 7.3 | ||
| 172 Ø x 51 | 318.1 | 16 .. 36 | DC | 6.9 | |||
| 172 Ø x 51 | 571.3 | 16 .. 36 | DC | 8.3 | |||
| 172 Ø x 51 | 547.8 | 75 | 36 .. 72 | DC | 8.4 | ||
| 172 Ø x 51 | 418.2 | 69 | 36 .. 72 | DC | 7.9 | ||
| 172 Ø x 51 | 353.4 | 60 | 36 .. 72 | DC | 7.3 | ||
| 172 Ø x 51 | 321 | 58 | 36 .. 72 | DC | 6.9 | ||
| 172 x 160 x 51 | 547.8 | 75 | 36 .. 72 | DC | 8.4 | ||
| 172 Ø x 51 | 353.4 | 60 | 36 .. 60 | DC | 7.3 | ||
| 172 Ø x 51 | 403.5 | 36 .. 72 | DC | 7.5 | |||
| 172 Ø x 51 | 606.7 | 83 | 36 .. 72 | DC | 8.4 | ||
| 60 x 60 x 25 | 25.9 | 35 | 10,8 .. 13,2 | DC | 5.4 | ||
| 60 x 60 x 25 | 23.6 | 33 | 6 .. 15 | DC | 5.2 | ||
| 60 x 60 x 25 | 34.2 | 44 | 18 .. 28 | DC | 6.1 | ||
| 60 x 60 x 25 | 23.6 | 34 | 12 .. 30 | DC | 5.1 | ||
| 60 x 60 x 25 | 34.2 | 44 | 18 .. 28 | DC | 6.1 | ||
| 60 x 60 x 25 | 25.9 | 35 | 40 .. 60 | DC | 5.4 | ||
| 172 x 150 x 51 | 206.2 | 52 | 8 .. 15 | DC | 6 | ||
| 172 x 150 x 51 | 241.5 | 57 | 12 .. 28 | DC | 6.4 | ||
| 172 x 150 x 51 | 282.7 | 63 | 12 .. 28 | DC | 7.1 | ||
| 172 x 150 x 51 | 206.2 | 52 | 12 .. 32 | DC | 6 | ||
| 172 x 150 x 51 | 241.5 | 57 | 12 .. 28 | DC | 6.4 | ||
| 172 x 150 x 51 | 353.4 | 65 | 16 .. 28 | DC | 7.4 | ||
| 172 x 150 x 51 | 241.5 | 57 | 28 .. 60 | DC | 6.4 | ||
| 172 x 150 x 51 | 282.7 | 63 | 28 .. 60 | DC | 7.1 | ||
| 172 x 150 x 51 | 206.2 | 52 | 28 .. 60 | DC | 6 | ||
| 172 x 150 x 51 | 241.5 | 57 | 28 .. 60 | DC | 6.4 | ||
| 172 x 150 x 72 | 353.4 | 65 | 40 .. 55 | DC | 7.4 | ||
| 172 x 150 x 51 | 530.1 | 78 | 36 .. 72 | DC | 8.6 | ||
| 150 x 172 x 38 | 223.8 | 56 | 60 | 115 | AC | 6.8 | |
| 150 x 172 x 38 | 188.5 | 51 | 50 | 230 | AC | 6.4 | |
| 150 Ø x 38 | 181.4 | 53 | 6 .. 15 | DC | 6.2 | ||
| 150 Ø x 38 | 181.4 | 53 | 12 .. 30 | DC | 6.2 | ||
| 150 Ø x 38 | 212 | 58 | 12 .. 26.5 | DC | 6.7 | ||
| 150 Ø x 38 | 181.4 | 53 | 24 .. 60 | DC | 6.2 | ||
| 70 x 70 x 15 | 25.9 | 38 | 8 .. 13.8 | DC | 5.3 | ||
| 70 x 70 x 15 | 16.5 | 25 | 8 .. 13.8 | DC | 4.7 | ||
| 70 x 70 x 15 | 21.2 | 32 | 8 .. 13.8 | DC | 5 | ||
| 70 x 70 x 15 | 25.9 | 38 | 18 .. 28 | DC | 5.3 | ||
| 150 Ø x 55 | 212 | 53 | 6 .. 15 | DC | 6.2 | ||
| 150 Ø x 55 | 212 | 53 | 12 .. 30 | DC | 6.2 | ||
| 150 Ø x 55 | 212 | 53 | 24 .. 60 | DC | 6.2 | ||
| 150 Ø x 55 | 250.3 | 62 | 60 | 115 | AC | 6.9 | |
| 150 Ø x 55 | 223.8 | 60 | 50 | 230 | AC | 6.8 | |
| 150 Ø x 55 | 223.8 | 53 | 60 | 115 | AC | 6.4 | |
| 150 Ø x 55 | 223.8 | 53 | 60 | 115 | AC | 6.4 | |
| 150 Ø x 55 | 191.4 | 49 | 50 | 230 | AC | 6 | |
| 150 Ø x 55 | 191.4 | 49 | 50 | 230 | AC | 6 | |
| 80 x 80 x 38 | 111.9 | 66 | 6 .. 13.8 | DC | 7.3 | ||
| 80 x 80 x 38 | 130.8 | 71 | 6 .. 13.8 | DC | 7.8 | ||
| 80 x 80 x 38 | 77.7 | 55 | 7 .. 13.8 | DC | 6.6 | ||
| 80 x 80 x 38 | 111.9 | 66 | 12 .. 27.6 | DC | 7.3 | ||
| 80 x 80 x 38 | 130.8 | 71 | 12 .. 27.6 | DC | 7.8 | ||
| 80 x 80 x 38 | 77.7 | 55 | 18 .. 26.4 | DC | 6.6 | ||
| 80 x 80 x 38 | 111.9 | 66 | 36 .. 53 | DC | 7.3 | ||
| 80 x 80 x 38 | 130.8 | 71 | 20 .. 58 | DC | 7.8 | ||
| 80 x 80 x 38 | 77.7 | 55 | 36 .. 53 | DC | 6.6 | ||
| 80 x 80 x 32 | 31.8 | 36 | 6 .. 15 | DC | 5.2 | ||
| 80 x 80 x 32 | 28.3 | 34 | 6 .. 15 | DC | 5 | ||
| 80 x 80 x 32 | 47.1 | 48 | 6 .. 12.6 | DC | 6.2 | ||
| 80 x 80 x 32 | 39.5 | 43 | 6 .. 15 | DC | 5.8 | ||
| 80 x 80 x 32 | 18.8 | 24 | 6 .. 15 | DC | 4 | ||
| 80 x 80 x 32 | 28.3 | 34 | 6 .. 15 | DC | 5 | ||
| 80 x 80 x 32 | 31.8 | 36 | 12 .. 31,5 | DC | 5.2 | ||
| 80 x 80 x 32 | 31.8 | 36 | 12 .. 28 | DC | 5.2 | ||
| 80 x 80 x 32 | 47.1 | 48 | 6 .. 12,6 | DC | 6.2 | ||
| 80 x 80 x 32 | 39.5 | 43 | 12 .. 31,5 | DC | 5.8 | ||
| 80 x 80 x 32 | 18.8 | 24 | 12 .. 31,5 | DC | 4 | ||
| 80 x 80 x 32 | 28.3 | 34 | 12 .. 31,5 | DC | 5 | ||
| 80 x 80 x 32 | 31.8 | 36 | 36 .. 56 | DC | 5.2 | ||
| 80 x 80 x 32 | 47.1 | 48 | 36 .. 56 | DC | 6.2 | ||
| 80 x 80 x 32 | 39.5 | 43 | 36 .. 56 | DC | 5.8 | ||
| 80 x 80 x 25 | 40.6 | 32 | 8 .. 15 | DC | 4.7 | ||
| 80 x 80 x 25 | 40.6 | 32 | 8 .. 15 | DC | 4.7 | ||
| 80 x 80 x 25 | 19.4 | 12 | 8 .. 15 | DC | 3.5 | ||
| 80 x 80 x 25 | 19.4 | 12 | 10 .. 14 | DC | 3.5 | ||
| 80 x 80 x 25 | 34.2 | 26 | 8 .. 15 | DC | 4.3 | ||
| 80 x 80 x 25 | 34.2 | 26 | 8 .. 14 | DC | 4.3 | ||
| 80 x 80 x 25 | 26.5 | 19 | 8 .. 15 | DC | 3.9 | ||
| 80 x 80 x 25 | 26.5 | 19 | 8 .. 14 | DC | 3.9 | ||
| 80 x 80 x 25 | 34.2 | 26 | 8 .. 14 | DC | 4.3 | ||
| 80 x 80 x 25 | 46.5 | 37 | 8 .. 13.2 | DC | 5 | ||
| 80 x 80 x 25 | 46.5 | 37 | 8 .. 15 | DC | 5 | ||
| 80 x 80 x 25 | 19.4 | 17 | 8 .. 15 | DC | 3.7 | ||
| 80 x 80 x 25 | 34.2 | 27 | 8 .. 15 | DC | 4.4 | ||
| 80 x 80 x 25 | 26.5 | 21 | 8 .. 15 | DC | 4 | ||
| 80 x 80 x 25 | 40.6 | 32 | 18 .. 28 | DC | 4.7 | ||
| 80 x 80 x 25 | 40.6 | 32 | 18 .. 28 | DC | 4.7 | ||
| 80 x 80 x 25 | 19.4 | 12 | 18 .. 28 | DC | 3.5 | ||
| 80 x 80 x 25 | 34.2 | 26 | 18 .. 28 | DC | 4.3 | ||
| 80 x 80 x 25 | 26.5 | 19 | 18 .. 28 | DC | 3.9 | ||
| 80 x 80 x 25 | 46.5 | 37 | 18 .. 26 | DC | 5 | ||
| 80 x 80 x 25 | 46.5 | 37 | 18 .. 28 | DC | 5 | ||
| 80 x 80 x 25 | 19.4 | 17 | 18 .. 28 | DC | 3.7 | ||
| 80 x 80 x 25 | 34.2 | 27 | 18 .. 28 | DC | 4.4 | ||
| 80 x 80 x 25 | 26.5 | 21 | 18 .. 28 | DC | 4 | ||
| 80 x 80 x 25 | 40.6 | 32 | 36 .. 56 | DC | 4.7 | ||
| 80 x 80 x 25 | 68.9 | 50 | 8 .. 15 | DC | 6.4 | ||
| 80 x 80 x 25 | 48.9 | 42 | 10.8 .. 13.2 | DC | 5.5 | ||
| 80 x 80 x 25 | 44.2 | 38 | 10.8 .. 13.2 | DC | 5.3 | ||
| 80 x 80 x 25 | 18.8 | 14 | 8 .. 15 | DC | 3.3 | ||
| 80 x 80 x 25 | 34.2 | 32 | 8 .. 15 | DC | 4.7 | ||
| 80 x 80 x 25 | 40.1 | 36 | 8 .. 15 | DC | 5 | ||
| 80 x 80 x 25 | 68.9 | 50 | 20 .. 26,4 | DC | 6.4 | ||
| 80 x 80 x 38 | 33.6 | 41 | 60 | 115 | AC | 5.5 | |
| 80 x 80 x 38 | 35.9 | 34 | 60 | 115 | AC | 4.8 | |
| 76 Ø x 37 | 26.5 | 30 | 60 | 115 | AC | ||
| 76 Ø x 37 | 27.7 | 32 | 60 | 115 | AC | ||
| 80 x 80 x 38 | 33.6 | 42 | 60 | 115 | AC | 5.7 | |
| 80 x 80 x 38 | 35.9 | 35 | 60 | 115 | AC | 5 | |
| 76 Ø x 37 | 26.5 | 31 | 60 | 115 | AC | ||
| 76 Ø x 37 | 27.7 | 33 | 60 | 115 | AC | ||
| 80 x 80 x 38 | 28.3 | 36 | 50 | 230 | AC | 5 | |
| 80 x 80 x 38 | 29.5 | 30 | 50 | 230 | AC | 4.4 | |
| 76 Ø x 37 | 22.4 | 25 | 50 | 230 | AC | ||
| 76 Ø x 37 | 23.6 | 27 | 50 | 230 | AC | ||
| 80 x 80 x 38 | 28.3 | 37 | 50 | 230 | AC | 5.1 | |
| 80 x 80 x 38 | 29.5 | 31 | 50 | 230 | AC | 4.5 | |
| 76 Ø x 37 | 22.4 | 26 | 50 | 230 | AC | ||
| 76 Ø x 37 | 23.6 | 28 | 50 | 230 | AC | ||
| 80 x 80 x 38 | 26.5 | 34 | 60 | 115 | AC | 4.8 | |
| 80 x 80 x 38 | 27.7 | 28 | 60 | 115 | AC | 4.3 | |
| 76 Ø x 37 | 20 | 23 | 60 | 115 | AC | ||
| 76 Ø x 37 | 21.2 | 24 | 60 | 115 | AC | ||
| 80 x 80 x 38 | 20 | 29 | 60 | 115 | AC | 4.3 | |
| 80 x 80 x 38 | 21.2 | 21 | 60 | 115 | AC | 3.7 | |
| 76 Ø x 37 | 15.3 | 18 | 60 | 115 | AC | ||
| 76 Ø x 37 | 15.9 | 18 | 60 | 115 | AC | ||
| 80 x 80 x 38 | 21.2 | 31 | 50 | 230 | AC | 4.6 | |
| 80 x 80 x 38 | 21.8 | 24 | 50 | 230 | AC | 3.9 | |
| 76 Ø x 37 | 17.7 | 19 | 50 | 230 | AC | ||
| 76 Ø x 37 | 18.3 | 20 | 50 | 230 | AC | ||
| 80 x 80 x 38 | 17.1 | 26 | 50 | 230 | AC | 4.1 | |
| 80 x 80 x 38 | 17.7 | 18 | 50 | 230 | AC | 3.3 | |
| 76 Ø x 37 | 13.5 | 15 | 50 | 230 | AC | ||
| 76 Ø x 37 | 14.1 | 15 | 50 | 230 | AC | ||
| 119 x 119 x 25 | 79.5 | 42 | 60 | 115 | AC | 5.4 | |
| 119 x 119 x 25 | 79.5 | 42 | 60 | 115 | AC | 5.4 | |
| 119 x 119 x 25 | 58.9 | 34 | 60 | 115 | AC | 4.6 | |
| 119 x 119 x 25 | 65.4 | 37 | 60 | 115 | AC | 5 | |
| 119 x 119 x 25 | 68.9 | 37 | 50 | 230 | AC | 5 | |
| 119 x 119 x 25 | 68.9 | 37 | 50 | 230 | AC | 5 | |
| 119 x 119 x 25 | 49.5 | 29 | 50 | 230 | AC | 4.4 | |
| 119 x 119 x 25 | 61.3 | 35 | 50 | 230 | AC | 4.7 | |
| 98.50 x 130 | 32.4 | 33 | 50/60 | DC | 4.5 | ||
| 98.5 x 130 | 31.2 | 33 | 50/60 | DC | 4.4 | ||
| 92 x 92 x 38 | 84.8 | 55 | 50 | 115 | AC | 6.4 | |
| 119 x 119 x 32 | 120.2 | 51 | 50 | 115 | AC | 6.4 | |
| 119 x 119 x 25 | 120.7 | 53 | 50 | 115 | AC | 6.2 | |
| 172 Ø x 51 | 206.2 | 50 | 50 | 115 | AC | 5.7 | |
| 80 x 80 x 32 | 47.1 | 48 | 50 | 115 | AC | 6.2 | |
| 98.5 x 130 | 47.1 | 35 | 50/60 | 85 .. 265 | DC | 4.7 | |
| 119 x 119 x 38 | 103.1 | 42 | 85 .. 132 | AC | 5.3 | ||
| 119 x 119 x 38 | 94.2 | 39 | 195 .. 265 | AC | 5.1 | ||
| 119 x 119 x 38 | 103.1 | 42 | 195 .. 265 | AC | 5.3 | ||
| 119 x 119 x 38 | 58.9 | 25 | 195 .. 265 | AC | 4.1 | ||
| 119 x 119 x 38 | 86.6 | 36 | 195 .. 265 | AC | 4.9 | ||
| 130 | 141.4 | 50/60 | 230 | AC | |||
| 130 | 162 | 50/60 | 230 | AC | |||
| 130 | 123.7 | 50/60 | 115 | AC | |||
| 130 | 162 | 50/60 | 115 | AC | |||
| 200 | 642 | 60 | - | 36 .. 57 | DC | ||
| 200 | 642 | 60 | 16 .. 28 | DC | |||
| 250 | 1130.9 | 70 | 16 .. 28 | DC | |||
| 250 | 1130.9 | 70 | 36 .. 57 | DC | |||
| 142 | 188.5 | 51 | 50 | 115 | AC | ||
| 142 | 223.8 | 56 | 60 | 115 | AC | ||
| 142 | 188.5 | 51 | 50 | 115 | AC | ||
| 142 | 223.8 | 56 | 60 | 115 | AC | ||
| 142 | 164.9 | 48 | 50 | 115 | AC | ||
| 142 | 179.6 | 50 | 60 | 115 | AC | ||
| 143 | 220.9 | 55 | 50 | 115 | AC | ||
| 143 | 259.2 | 60 | 60 | 115 | AC | ||
| 143 | 259.2 | 60 | 60 | 115 | AC | ||
| 143 | 247.4 | 54 | 50 | 115 | AC | ||
| 143 | 60 | 115 | AC | ||||
| 143 | 294.5 | 58 | 60 | 115 | AC | ||
| 143 | 247.4 | 54 | 50 | 115 | AC | ||
| 143 | 294.5 | 58 | 60 | 115 | AC | ||
| 200 | 494.8 | 56 | 50 | 115 | AC | ||
| 200 | 494.8 | 56 | 60 | 115 | AC | ||
| 200 | 544.8 | 59 | 50 | 115 | AC | ||
| 200 | 606.7 | 61 | 60 | 115 | AC | ||
| 200 | 544.8 | 59 | 50 | 115 | AC | ||
| 200 | 606.7 | 61 | 60 | 115 | AC | ||
| 200 | 606.7 | 61 | 60 | 115 | AC | ||
| 200 | 544.8 | 59 | 50 | 115 | AC | ||
| 200 | 606.7 | 61 | 60 | 115 | AC | ||
| 200 | 518.3 | 58 | 50 | 230 | AC | ||
| 200 | 589 | 61 | 60 | 230 | AC | ||
| 200 | 544.8 | 59 | 50 | 115 | AC | ||
| 200 | 606.7 | 61 | 60 | 115 | AC | ||
| 250 | 1113.2 | 69 | 50 | 115 | AC | ||
| 250 | 1207.5 | 71 | 60 | 115 | AC | ||
| 250 | 1098.5 | 69 | 50 | 230 | AC | ||
| 250 | 1160.3 | 70 | 60 | 230 | AC | ||
| 250 | 1095.5 | 67 | 50 | 115 | AC | ||
| 250 | 1166.2 | 70 | 60 | 115 | AC | ||
| 250 | 1166.2 | 70 | 60 | 115 | AC | ||
| 130 | 191.4 | 49 | 50 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 191.4 | 49 | 50 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 191.4 | 49 | 50 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 191.4 | 49 | 50 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 191.4 | 49 | 50 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 191.4 | 49 | 50 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 191.4 | 49 | 50 | 115 | AC | ||
| 130 | 223.8 | 53 | 60 | 115 | AC | ||
| 130 | 194.4 | 53 | 50 | 115 | AC | ||
| 130 | 223.8 | 57 | 60 | 115 | AC | ||
| 130 | 223.8 | 60 | 50 | 115 | AC | ||
| 130 | 250.3 | 62 | 60 | 115 | AC | ||
| 200 | 265.1 | 40 | 50 | 230 | AC | ||
| 200 | 309.2 | 44 | 60 | 230 | AC |
Legend
Dimensions = Dimensions / Size
qV = Air flow
LpA = Sound pressure level
qV = Air flow
LpA = Sound pressure level
f = Frequency
UN = Nominal voltage (range)
AC/DC = Type of voltage
UN = Nominal voltage (range)
AC/DC = Type of voltage
LwA = Sound power level
SẢN PHẨM TƯƠNG ĐƯƠNG
LIÊN HỆ
- là nhà XNK hàng đầu và là nhà cung cấp chuyên nghiệp các mặt hàng tự động, thiết bị điện và điện công nghiệp,.... Bên cạnh đó chúng tôi là nhà thực hiện các giải pháp tích hợp trong công nghiêp, dân dụng, xây dựng,... Chúng tôi đáp ứng mọi xu hướng công nghiệp hóa, hiện đại hóa hiện nay
Liên hệ cho chúng tôi để CÓ thông tin mà Quý khách CẦN.
< SALE & TECHNICAL SUPPORT >
< PROJECT SUPPORT >
Email :
-------------------------------------------------------------------
Thermosense Vietnam | Solvac Vietnam | Citizen Vietnam | | Renishaw Vietnam | Di-soric Vietnam | | | | Bacharach Vietnam | | Showa Denki Vietnam | S | | | | Tetra-K Electronic Vietnam | | | | | | Mitsubishi Vietnam | Siemens Vietnam | Omron Viet Nam | TPM Vietnam | Tecsis Vietnam | Wise Control Vietnam | Micro Process Controls Vietnam | Wika Vietnam | Asahi Gauge Vietnam | TemPress Vietnam | Itec Vietnam | Konics Vietnam | Ashcroft Vietnam | Ametek Vietnam – Afriso Vietnam | LS Industrial Vietnam | RS Automation Vietnam | Balluff Vietnam | Baumer Vietnam | Kuppler Vietnam | Pulsotronics Vietnam | Leuze Vietnam | Microsonic Vietnam | AST Vietnam | Tempsen Vietnam | STS Vietnam | Micro Dectector Vietnam | Proxitron Vietnam | Microsens Vietnam | Towa Seiden Vietnam | Promesstec Vietnam | Ski Vietnam | Eltra Vietnam | Hohner Vietnam | Posital Vietnam | Elap Vietnam | Beisensors Vietnam | Newall Vietnam | Dotech Vietnam | Watlow Vietnam | Bihl Weidemann Vietnam | Prosoft Vietnam | ICP DAS Vietnam | Beckhoff Vietnam | Keller M S R Vietnam | IRCON Vietnam | Raytek Vietnam | Kimo Vietnam | YSI Vietnam | Jenco Vietnam | Tekhne Vietnam | Atago Vietnam | E Instrument Vietnam | IMR Vietnam | Netbiter Viêt Nam | FMS Vietnam | Unipulse Vietnam | Migun Vietnam | Sewha Vietnam | HBM Vietnam | Pilz Vietnam | Dold Vietnam | | Puls Vietnam | Microsens Vietnam | Controller Sensor Vietnam | Mark|10 Vietnam | Schmidt Vietnam | Bernstein Vietnam | Celduc Vietnam | Univer Vietnam | Waicom Vietnam | Aignep Vietnam | Top Air Vietnam | Burket Vietnam | | JJ Automation Vietnam | Somas Vietnam | Delta Elektrogas Vietnam | Pentair Vietnam | Auma Vietnam | Sipos Artorik Vietnam | Flowserve Vietnam | Sinbon Vietnam | Setra Vietnam | Yottacontrok Vietnam | Sensor Tival Vietnam | Vaisala Vietnam | Crouzet Vietnam | RheinTacho Vietnam | Cityzen Seimitsu Vietnam | Flowserve Vietnam | Greatork Vietnam | PS Automation Vietnam | Bettis Vietnam | Sinbon Vietnam | Setra Vietnam | Laurel Vietnam | Datapaq Vietnam | EE Electronik Vietnam | Banico Vietnam | Sinfonia Vietnam | Digmesa Vietnam | Alia Vietnam | Flowline Vietnam | Brook Instrument Vietnam | Dakota Instrument Vietnam | Diehl Metering Vietnam | Stego Vietnam | Rotronic Vietnam | Hopeway Vietnam | Beko Vietnam | Matsui Vietnam | Westec Vietnam | Sometech Vietnam | Offshore Vietnam | DCbox Vietnam | Fanuc Vietnam | KollMorgen Vietnam | Endress & Hauser Vietnam | Metso Automation Vietnam | MKS Instruments Vietnam | Teledyne Instruments Vieatnam | Badger Meter Vietnam | Hirschmann Vietnam | Servo Mitsubishi Vietnam | SCR SA Việt Nam | Biotech Flow Meter Việt Nam | Thermo Electric Việt Nam | Siko Việt Nam | Klinger Việt Nam | HK Instrument Việt Nam | Magnetrol Viet Nam | Lika Viet Nam | Setra Viet Nam | Kistler Viet Nam | Renishaw Viet Nam | Mindmen Vietnam | | RKC Instrument Vietnam | Tai Huei Vietnam | Fotek Vietnam | Danfoss Vietnam
-------------------------------------------------------------------
Sản phẩm cùng loại
Rơle điện tử SCHNEIDER EOCR3EZ-80AUH
Vui lòng gọi
Phin lọc DML 306 Danfoss
Vui lòng gọi
ĐÁ LỌC 48-DC DANFOSS
Vui lòng gọi
Quạt dàn lạnh, quạt dàn nóng YWF4E-250 S-E5Z
Vui lòng gọi
QUẠT DÀN NÓNG, QUẠT DÀN LẠNH YDF4E-250S 250MM
Vui lòng gọi
PHAO DẦU ĐIỆN TỬ OMB-Oil JB24
Vui lòng gọi
DÀN LẠNH EDEN FEME LT6
Vui lòng gọi
DÀN LẠNH EDEN FEME PD6 GIÁ TỐT
Vui lòng gọi
DÀN LẠNH EDEN DÒNG FEM
Vui lòng gọi
DÀN LẠNH EDEN DÒNG FEME
Vui lòng gọi
VỆ SINH, BẢO TRÌ HỆ THỐNG LẠNH CÔNG NGHIỆP
Vui lòng gọi
VỆ SINH DÀN NÓNG ( DÀN NGƯNG ) THƯƠNG HIỆU EDEN
Vui lòng gọi
SỬA CHỮA MÁY NÉN BITZER 34HP TẠI WINMART QUY NHƠN
Vui lòng gọi
Ống gân xoắn HDPE D175/230 GOMAX
176,050 đ
251,500 đ
Ống gân xoắn HDPE D250/320 GOMAX
438,200 đ
626,000 đ
Ống gân xoắn HDPE D200/260 GOMAX
219,450 đ
313,500 đ
Măng sông MS 25 GOMAX
7,000 đ
Măng sông MS 30 GOMAX
8,800 đ
Măng sông MS 65 GOMAX
23,600 đ
