CHARACTERISTICS
- Technology
- thin-film
- Pressure type
- relative
- Fluid
- for liquids
- Protection level
- rugged, IP67
- Other characteristics
- adjustable, with digital display, programmable, temperature-compensated
- Applications
- for hydraulic applications, industrial
- Process temperature
-
Min.: -25 °C (-13 °F)
Max.: 85 °C (185 °F)
- Pressure range
-
Min.: 0 bar (0 psi)
Max.: 600 bar (8,702.26 psi)
DESCRIPTION

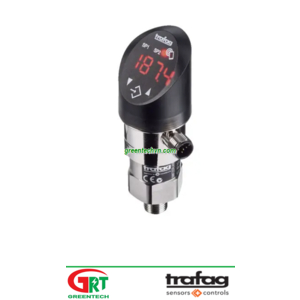

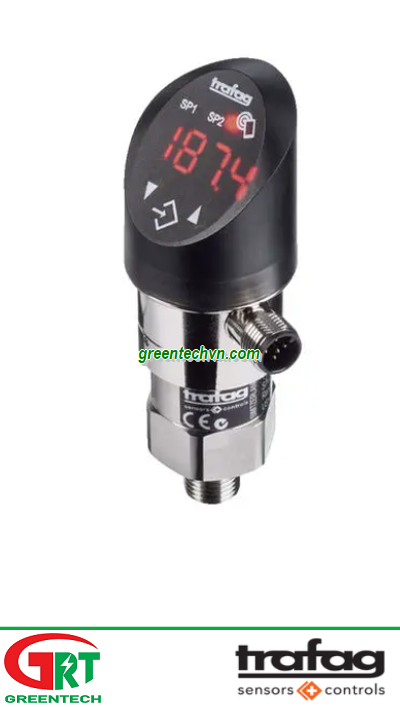

Main features Parameterization also via NFC-smartphone App (Android) Display and electrical connection are independently rotatable 335°/343° Analogue output switchable mA or V Integrated datalogger Measuring range adjustable The DPS 8381 is the ideal combination of pressure switch and transmitter with a pressure display. The parameters are set on the device or in a timesaving way via an NFC - smartphone App. The settings in combination with a comprehensive set of options make the DPS 8381 suitable for a wide range of demanding applications.
