CHARACTERISTICS
- Technology
- thin-film
- Pressure type
- relative
- Fluid
- for liquids
- Material
- stainless steel
- Protection level
- rugged, IP65, IP67, IP69K
- Other characteristics
- compact, programmable
- Applications
- for hydraulic applications, HVAC, for railway applications, for marine applications
- Process temperature
-
Min.: -40 °C (-40 °F)
Max.: 125 °C (257 °F)
- Pressure range
-
Min.: 0 bar (0 psi)
Max.: 600 bar (8,702.26 psi)
DESCRIPTION

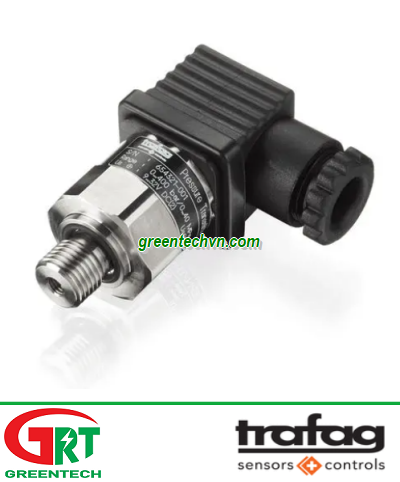

Main features Rugged design for harsh environments Wide temperature range Excellent long-term stability Very compact design Switchpoint factory set or programmable on site with Trafag Sensor Communicator SC About The Electronic Pressure Switch EPN-S is based on the well-proven EPN transmitter family. It stands for reliable accuracy over a wide temperature range and excellent long-term stability even in harshest environments in the shipbuilding and railway industry. The switchpoint is factory set or can be programmed on site using Trafag’s Sensor Communicator SC.
