TOS9200 Series
[5kV AC/6kV DC] Hipot and Insulation Resistance Tester, Rise/Fall-Time Control Function Equipped : 4 Models
Outline
The TOS9200 Series has been developed to meet a wide diversity of customer needs. Including the refinement and enforcement of Kikusui’s former Series, its specifications reflect the results of detailed study of our large database of user’s requirements including special orders and modifying specifications.

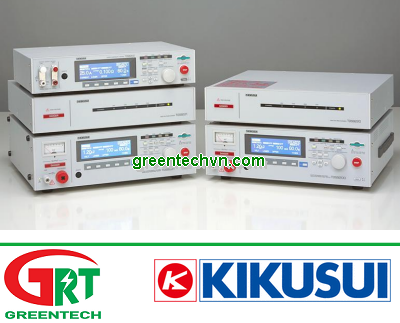

The TOS9200 Series consists of four products the testers TOS9200 and TOS9201, and the high-voltage scanners TOS9221 and TOS9220.
The TOS9200 is equipped with AC withstanding voltage and insulation resistance testing functions, while the TOS9201 has a DC hipot testing function in addition to these two functions. The power block, a core component, employs a high-efficiency switching power supply and a switching amplifier based on PWM systems. These features realize high power and enhanced stability, as well as reducing the size and weight of the unit. When combined with the earth continuity tester TOS6200, the TOS9200 Series integrates three or four types of tests in a single process. Furthermore, when used together with the high-voltage scanner TOS9220/9221 (equipped with a contact check function), the tester is capable of automatically checking test points for up to 16 channels, thereby facilitating a safe, reliable automatic testing system.
The TOS9200 Series consists of four products the testers TOS9200 and TOS9201, and the high-voltage scanners TOS9221 and TOS9220.
The TOS9200 is equipped with AC withstanding voltage and insulation resistance testing functions, while the TOS9201 has a DC hipot testing function in addition to these two functions. The power block, a core component, employs a high-efficiency switching power supply and a switching amplifier based on PWM systems. These features realize high power and enhanced stability, as well as reducing the size and weight of the unit. When combined with the earth continuity tester TOS6200, the TOS9200 Series integrates three or four types of tests in a single process. Furthermore, when used together with the high-voltage scanner TOS9220/9221 (equipped with a contact check function), the tester is capable of automatically checking test points for up to 16 channels, thereby facilitating a safe, reliable automatic testing system.
Features
- Rise-time control function
- Fall-time control function
- Offset cancel function
- Measured-value hold function
- Output voltage monitoring function
- Memory function
- Program function
- Interlock Function
- DC Discharge Function
Lineup
| Model | Specification |
|---|---|
| TOS9200 | Output: AC0.05kV to 5kV(100mA) at puncture test, DC25 to 1000V/0.01M Ω to 9.99G Ω for insulation test, Rise-time control / Fall-time control function provided, Output voltage and panel settings are controlled through GPIB/RS-232C |
| TOS9201 | Output: AC0.05kV to 5kV(100mA) / DC0.05kV to 6kV(10mA) at puncture test, DC25 to 1000V/0.01M Ω to 9.99G Ω for insulation test, Rise-time control(AC) / Fall-time control (AC) function provided, Output voltage and panel settings are controlled through GPIB/RS-232C |
| TOS9220 | High Voltage Scanning Unit For model TOS9200/9201, Up to four TOS9220/9221 units can be connected in parallel |
| TOS9221 | High Voltage Scanning Unit For model TOS9200/9201, Up to four TOS9220/9221 units can be connected in parallel, Equipped with contact check function |
Options (Related products)
RC01-TOS
Option(s) for Electrical Safety Testers
Remote control box (For one hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
Remote control box (For one hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
RC02-TOS
Option(s) for Electrical Safety Testers
Remote control box (For both-hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
Remote control box (For both-hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
HP01A-TOS
Option(s) for Electrical Safety Testers
High-voltage test probe, Cable Length 1.8m (AC4kV,DC5kV Max.) , Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
High-voltage test probe, Cable Length 1.8m (AC4kV,DC5kV Max.) , Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
HP02A-TOS
Option(s) for Electrical Safety Testers
High-voltage test probe, Cable Length 3.5m (AC4kV,DC5kV Max.), Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
High-voltage test probe, Cable Length 3.5m (AC4kV,DC5kV Max.), Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX
TL04-TOS
Option(s) for Electrical Safety Testers
High-voltage test lead, 1.5m(5kV Max.), for TOS1200, RL01-TOS
High-voltage test lead, 1.5m(5kV Max.), for TOS1200, RL01-TOS
TL05-TOS
Option(s) for Electrical Safety Testers
High-voltage test lead, 1.5m(5kV Max.), for TOS7000 series,149-10A, RL01-TOS
High-voltage test lead, 1.5m(5kV Max.), for TOS7000 series,149-10A, RL01-TOS
TL06-TOS
Option(s) for Electrical Safety Testers
High-voltage test lead for parallel connection of TOS9220/9221, cable length: 0.5 m/max. operating voltage: 5 kV
High-voltage test lead for parallel connection of TOS9220/9221, cable length: 0.5 m/max. operating voltage: 5 kV
TL07-TOS
Option(s) for Electrical Safety Testers
Test lead for TOS9220/9221, cable length: 1.5 m/max. operating voltage: 5 kV
Test lead for TOS9220/9221, cable length: 1.5 m/max. operating voltage: 5 kV
RL01-TOS
Option(s) for Electrical Safety Testers
Load resistor for calibration of a W. Tester, The value of the resistor are selected to meet UL (UL 1492, UL1409, UL1410) requirements
Load resistor for calibration of a W. Tester, The value of the resistor are selected to meet UL (UL 1492, UL1409, UL1410) requirements
TOS1200
Option(s) for Electrical Safety Testers
For the availability, please check with us.
Calibrator for the leakage current detecting sensitivity of a W. Tester
For the availability, please check with us.
Calibrator for the leakage current detecting sensitivity of a W. Tester
149-10A
High Voltage Digital Voltmeter (AC/DC)
AC/DC +/-10kV, Used for high voltage: max. 10kV, For DC, AC (50 to 60Hz) voltage, High input impedance: 1000M Ω
AC/DC +/-10kV, Used for high voltage: max. 10kV, For DC, AC (50 to 60Hz) voltage, High input impedance: 1000M Ω
KRB2-TOS
Option(s) for Electrical Safety Testers
Bracket (Inch size) for TOS6200, TOS9220/TOS9221, OH01-KHA, PLZ2405WB
Bracket (Inch size) for TOS6200, TOS9220/TOS9221, OH01-KHA, PLZ2405WB
KRB100-TOS
Option(s) for Electrical Safety Testers
Bracket (Metric size) for TOS6200(A), TOS9220/TOS9221, OH01-KHA, PLZ2405WB
Bracket (Metric size) for TOS6200(A), TOS9220/TOS9221, OH01-KHA, PLZ2405WB
KRB3-TOS
Option(s) for Electrical Safety Testers
Bracket (Inch size) for TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M, LZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ
Bracket (Inch size) for TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M, LZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ
KRB150-TOS
Option(s) for Electrical Safety Testers
Bracket (Metric size) for TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M, PLZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ
Bracket (Metric size) for TOS9200, TOS9201, TOS8870A, PAM(2kW type), PCR1000M, PLZ1205W, PLZ-4W/4WH, PWR, PAT, PBZ
