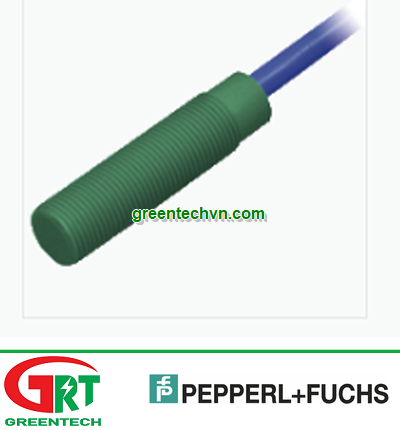

NJ4-12GK-N | Pepperl Fuchs | Cảm biến tiệm cận NJ4-12GK-N | Inductive Sensor

General specifications
Switching function		Normally closed (NC)
Output type		NAMUR
Rated operating distance		4 mm
Installation		non-flush
Assured operating distance		0 ... 3.24 mm
Reduction factor rAl		0.4
Reduction factor rCu		0.3
Reduction factor r304		0.85
Output type		2-wire
Nominal ratings
Nominal voltage		8.2 V (Ri approx. 1 kΩ)
Switching frequency		0 ... 1500 Hz
Current consumption
	Measuring plate not detected	min. 3 mA
	Measuring plate detected	≤ 1 mA
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
MTTFd		11774 a
Mission Time (TM)		20 a
Diagnostic Coverage (DC)		0 %
Compliance with standards and directives
Standard conformity
	NAMUR	EN 60947-5-6:2000 IEC 60947-5-6:1999
	Standards	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
Approvals and certificates
EAC conformity		TR CU 012/2011
FM approval
	Control drawing	116-0165
UL approval		cULus Listed, General Purpose
CSA approval		cCSAus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25 ... 100 °C (-13 ... 212 °F)
Mechanical specifications
Connection type		cable PVC , 2 m
Core cross-section		0.34 mm2
Housing material		PBT
Sensing face		PBT
Degree of protection		IP66 / IP68
Cable
	Bending radius	> 10 x cable diameter
Data for application in connection with hazardous areas
Equipment protection level		Gb , Da , Mb
Equipment protection level Gb
Type of protection		intrinsic safety
CE marking		[PD-Z02585A]
Certificates
	Appropriate type	NJ4-12GK-N...
	ATEX certificate	PTB 00 ATEX 2048 X
	ATEX marking	II 2G Ex ia IIC T6…T1 Gb
	Standards	EN 60079-0:2012+A11:2013 , EN 60079-11:2012
	IECEx certificate	IECEx PTB 11.0037X
	IECEx marking	Ex ia IIC T6 Ga
	Standards	IEC 60079-0:2004 , IEC 60079-11:2006
Effective internal inductivity		max. 45 nF A cable length of 10 m is considered.
Effective internal inductance		max. 50 µH A cable length of 10 m is considered.
Maximum permissible ambient temperature		Also observe the maximum permissible ambient temperature stated in the general technical data. Keep to the lower of the two values. at Ui = 16 V , Ii = 25 mA , Pi = 34 mW , T6 : 73 °C (163.4 °F) T5 : 88 °C (190.4 °F) T4 : 100 °C (212 °F) T3 : 100 °C (212 °F) T2 : 100 °C (212 °F) T1 : 100 °C (212 °F) at Ui = 16 V , Ii = 25 mA , Pi = 64 mW , T6 : 69 °C (156.2 °F) T5 : 84 °C (183.2 °F) T4 : 100 °C (212 °F) T3 : 100 °C (212 °F) T2 : 100 °C (212 °F) T1 : 100 °C (212 °F) at Ui = 16 V , Ii = 52 mA , Pi = 169 mW , T6 : 51 °C (123.8 °F) T5 : 66 °C (150.8 °F) T4 : 80 °C (176 °F) T3 : 80 °C (176 °F) T2 : 80 °C (176 °F) T1 : 80 °C (176 °F) at Ui = 16 V , Ii = 76 mA , Pi = 242 mW , T6 : 39 °C (102.2 °F) T5 : 54 °C (129.2 °F) T4 : 61 °C (141.8 °F) T3 : 61 °C (141.8 °F) T2 : 61 °C (141.8 °F) T1 : 61 °C (141.8 °F)
Equipment protection level Da
Type of protection		intrinsic safety
CE marking		[PD-Z02585A]
Certificates
	Appropriate type	NJ4-12GK-N...
	ATEX certificate	PTB 00 ATEX 2048 X
	ATEX marking	II 1D Ex ia IIIC T135°C Da
	Standards	EN 60079-0:2012+A11:2013 , EN 60079-11:2012
Effective internal inductivity		max. 45 nF A cable length of 10 m is considered.
Effective internal inductance		max. 50 µH A cable length of 10 m is considered.
Maximum permissible ambient temperature		Also observe the maximum permissible ambient temperature stated in the general technical data. Keep to the lower of the two values. at Ui = 16 V , Ii = 25 mA , Pi = 34 mW : 100 °C (212 °F) at Ui = 16 V , Ii = 25 mA , Pi = 64 mW : 100 °C (212 °F) at Ui = 16 V , Ii = 52 mA , Pi = 169 mW : 80 °C (176 °F) at Ui = 16 V , Ii = 76 mA , Pi = 242 mW : 61 °C (141.8 °F)
Equipment protection level Mb
Type of protection		intrinsic safety
Certificates
	Appropriate type	NJ4-12GK-N...
	IECEx certificate	IECEx PTB 11.0037X
	IECEx marking	Ex ia I
	Standards	IEC 60079-0:2004 , IEC 60079-11:2006
Effective internal inductivity		max. 45 nF A cable length of 10 m is considered.
Effective internal inductance		max. 50 µH A cable length of 10 m is considered.
Maximum permissible ambient temperature		Also observe the maximum permissible ambient temperature stated in the general technical data. Keep to the lower of the two values. at Ui = 16 V , Ii = 25 mA , Pi = 34 mW : 100 °C (212 °F) at Ui = 16 V , Ii = 25 mA , Pi = 64 mW : 100 °C (212 °F) at Ui = 16 V , Ii = 52 mA , Pi = 169 mW : 80 °C (176 °F) at Ui = 16 V , Ii = 76 mA , Pi = 242 mW : 61 °C (141.8 °F)
General information
Use in the hazardous area		see instruction manuals
